O-Ring And Refrigerant Connection: Notes

WARNING: This page is about a different variant/trim than selected.

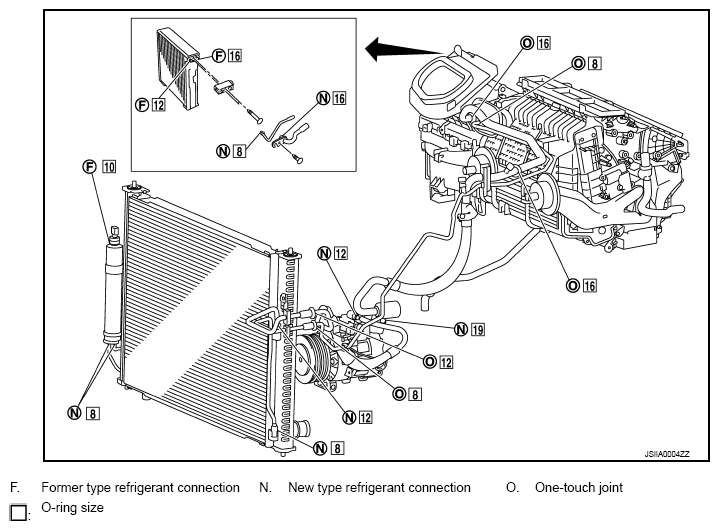

Fig 1: Identifying O-Ring And Refrigerant Connection Components
G08453034Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: The new and former refrigerant connections use different O-ring configurations. Never confuse O-rings since they are not interchangeable. Refrigerant may leak at the connection if a wrong O-ring is installed.
