Transmission Assembly: Assembly

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. As shown in the figure, use a drift [22 mm (0.87 in) dia. commercial service tool] to drive manual shaft oil seals into the transmission case until it is flush.
    CAUTION:
    • Never reuse manual shaft oil seals.
    • Apply ATF to manual shaft oil seals.
      Fig 1: Identifying Manual Shaft Oil Seals
      G07100685Courtesy of NISSAN MOTOR CO., U.S.A.

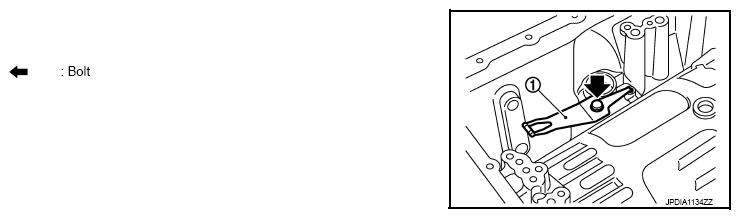

  2. Install detent spring to transmission case. Tighten detent spring bolt to the specified torque.
    Fig 2: Identifying Detent Spring
    G07100686Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install manual shaft to transmission case.
    Fig 3: Identifying Manual Shaft
    G07100687Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install parking rod (1) to manual plate (2).
    Fig 4: Installing Parking Rod
    G07100688Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install manual plate (with parking rod) to manual shaft.
    Fig 5: Identifying Manual Plate
    G07100689Courtesy of NISSAN MOTOR CO., U.S.A.

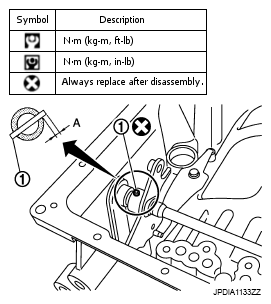

  6. Install retaining pin (1) into the manual plate and manual shaft.
    1. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the manual plate.

      A : Approx. 2 mm (0.08 in)

      CAUTION: Drive retaining pin to 2±0.5 mm (0.08±0.020 in) over the manual plate.
      Fig 6: Identifying Retaining Pin
      G07100690Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install retaining pin into the transmission case and manual shaft.
    1. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
    2. Use a hammer to tap the retaining pin into the transmission case.
      CAUTION: Drive retaining pin to 5±1 mm (0.20±0.04 in) over the transmission case.
      Fig 7: Identifying Retaining Pin In Transmission Case And Manual Shaft
      G07100691Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install D-rings in reverse brake piston.
    Fig 8: Identifying D-Rings In Reverse Brake Piston
    G07100692Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install reverse brake piston in transmission case.
    Fig 9: Identifying Reverse Brake Piston
    G07100693Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install needle bearing to drum support edge surface.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 10: Identifying Needle Bearing
    G07100694Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install seal rings to drum support.
    Fig 11: Identifying Seal Rings
    G07100695Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install reverse brake spring retainer and reverse brake return spring in transmission case.
    Fig 12: Identifying Spring Retainer And Return Spring
    G07100696Courtesy of NISSAN MOTOR CO., U.S.A.

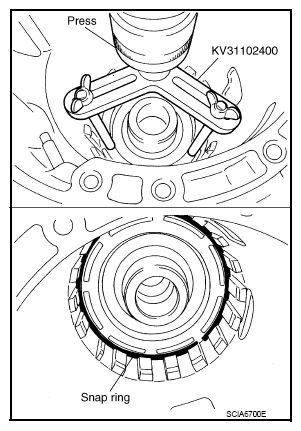

  13. Set the clutch spring compressor (SST: KV31102400) on reverse brake spring retainer and install snap ring (fixing spring retainer) in transmission case while compressing return spring.
    CAUTION:
    • Securely assemble them using a flat-bladed screwdriver so that snap ring tension is slightly weak.
    • Be careful not to damage snap ring.
      Fig 13: Setting Clutch Spring Compressor On Reverse Brake Spring Retainer
      G07100697Courtesy of NISSAN MOTOR CO., U.S.A.

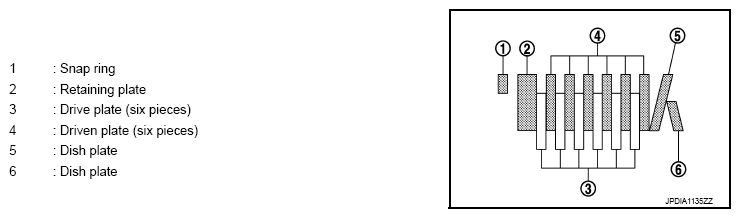

  14. Install reverse brake drive plates, driven plates, dish plates and retaining plate in transmission case.
    Fig 14: Installing Reverse Brake Drive Plates
    G07100698Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Check order of plates.

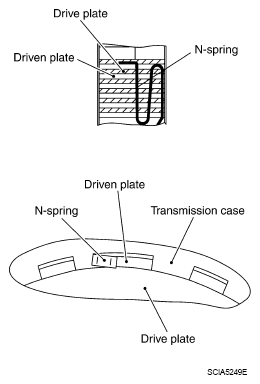

  15. Assemble N-spring.
  16. Install reverse brake retaining plate in transmission case.
    Fig 15: Assembling N-Spring
    G07100699Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install snap ring in transmission case.
    CAUTION: Be careful not to damage snap ring.
    Fig 16: Identifying Snap Ring In Transmission Case
    G07100700Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.

    Specified clearance "A"

    Standard: Refer to  "REVERSE BRAKE CLEARANCE ".

    Retaining plate: Refer to  "REVERSE BRAKE CLEARANCE ".

    Fig 17: Measuring Clearance Between Retaining Plate And Snap Ring
    G07100701Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install needle bearing to transmission case.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 18: Identifying Needle Bearing
    G07100702Courtesy of NISSAN MOTOR CO., U.S.A.

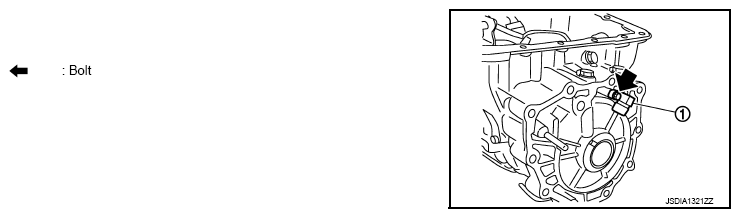

  20. Install output speed sensor (1) to transmission case. Tighten revolution sensor bolt to the specified torque.
    Fig 19: Identifying Output Speed Sensor
    G07100703Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Never subject it to impact by dropping or hitting it.
    • Never disassemble.
    • Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Never place in an area affected by magnetism.
  21. As shown in the figure, use the drift to drive rear oil seal into the rear extension until it is flush.
    CAUTION:
    • Never reuse rear oil seal.
    • Apply ATF to rear oil seal.
      Fig 20: Driving Rear Oil Seal Into Rear Extension
      G07100704Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Install return spring (1) to parking pawl (2).
    Fig 21: Identifying Return Spring And Parking Pawl
    G07100705Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Install parking pawl (with return spring) and pawl shaft to rear extension.
    Fig 22: Identifying Parking Pawl And Pawl Shaft
    G07100706Courtesy of NISSAN MOTOR CO., U.S.A.
  24. Install parking actuator support to rear extension.
    Fig 23: Identifying Parking Actuator Support
    G07100707Courtesy of NISSAN MOTOR CO., U.S.A.
  25. Install needle bearing (1) to rear extension.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 24: Identifying Needle Bearing
    G07100708Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Install seal rings (1) to output shaft.
    Fig 25: Identifying Seal Rings
    G07100709Courtesy of NISSAN MOTOR CO., U.S.A.
  27. Install parking gear (1) to output shaft (2).
    Fig 26: Identifying Parking Gear
    G07100710Courtesy of NISSAN MOTOR CO., U.S.A.
  28. Install output shaft in transmission case.
    CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)
    Fig 27: Identifying Output Shaft In Transmission Case
    G07100711Courtesy of NISSAN MOTOR CO., U.S.A.
  29. Install bearing race to output shaft.
    Fig 28: Identifying Bearing Race In Output Shaft
    G07100712Courtesy of NISSAN MOTOR CO., U.S.A.

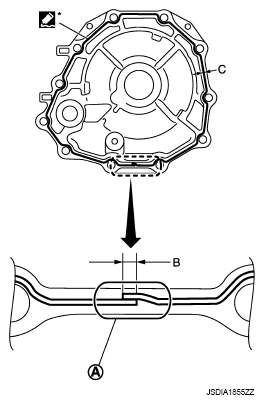

  30. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.

    Sealant starting point and endpoint (A) : Start and finish point shall be in the center of two bolts.

    Overlap width of sealant starting point and endpoint (B) : 3 - 5 mm (0.12 - 0.20 in)

    Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

    Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.
    Fig 29: Applying Sealant To Rear Extension Assembly
    G07100713Courtesy of NISSAN MOTOR CO., U.S.A.
  31. Install rear extension assembly to transmission case.
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.
    Fig 30: Identifying Rear Extension Assembly
    G07100714Courtesy of NISSAN MOTOR CO., U.S.A.

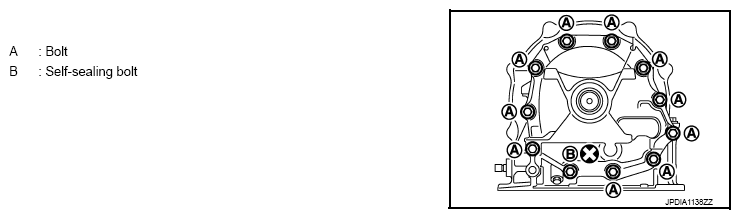

  32. Tighten rear extension assembly bolts to the specified torque.
    Fig 31: Identifying Rear Extension Assembly Bolts
    G07100715Courtesy of NISSAN MOTOR CO., U.S.A.
  33. Install needle bearing in drum support.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 32: Identifying Needle Bearing
    G07100716Courtesy of NISSAN MOTOR CO., U.S.A.
  34. Install direct clutch assembly in reverse brake.
    CAUTION: Make sure that drum support edge surface and direct clutch inner boss edge surface come to almost same place.
    Fig 33: Identifying Direct Clutch Assembly
    G07100717Courtesy of NISSAN MOTOR CO., U.S.A.
  35. Install high and low reverse clutch assembly in direct clutch.
    Fig 34: Identifying High And Low Reverse Clutch Assembly
    G07100718Courtesy of NISSAN MOTOR CO., U.S.A.
  36. Align the drive plate using a flat-bladed screwdriver.
    Fig 35: Aligning Drive Plate
    G07100719Courtesy of NISSAN MOTOR CO., U.S.A.
  37. Install high and low reverse clutch hub, mid sun gear assembly, and rear sun gear assembly as a unit.
    Fig 36: Identifying High And Low Reverse Clutch Hub
    G07100720Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Make sure that portion "A" of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion "B" of rear sun gear.
    Fig 37: Checking Portion Of High And Low Reverse Clutch Drum
    G07100721Courtesy of NISSAN MOTOR CO., U.S.A.
  38. Install needle bearing in rear carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 38: Identifying Needle Bearing In Rear Carrier Assembly
    G07100722Courtesy of NISSAN MOTOR CO., U.S.A.
  39. Install bearing race in rear carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 39: Identifying Bearing Race In Rear Carrier Assembly
    G07100723Courtesy of NISSAN MOTOR CO., U.S.A.
  40. Install rear carrier assembly in direct clutch drum.
    Fig 40: Identifying Rear Carrier Assembly
    G07100724Courtesy of NISSAN MOTOR CO., U.S.A.
  41. Install needle bearing (rear side) to mid carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 41: Identifying Needle Bearing
    G07100725Courtesy of NISSAN MOTOR CO., U.S.A.
  42. Install needle bearing (front side) to mid carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 42: Identifying Needle Bearing
    G07100726Courtesy of NISSAN MOTOR CO., U.S.A.
  43. Install mid carrier assembly in rear carrier assembly.
    Fig 43: Identifying Mid Carrier Assembly In Rear Carrier Assembly
    G07100727Courtesy of NISSAN MOTOR CO., U.S.A.

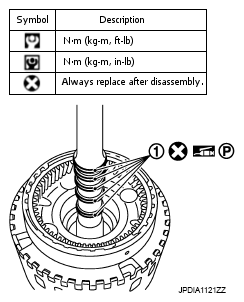

  44. Install seal rings (1) to input clutch assembly.
    Fig 44: Identifying Seal Rings
    G07100728Courtesy of NISSAN MOTOR CO., U.S.A.
  45. Install needle bearing (1) to front carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 45: Identifying Needle Bearing
    G07100729Courtesy of NISSAN MOTOR CO., U.S.A.

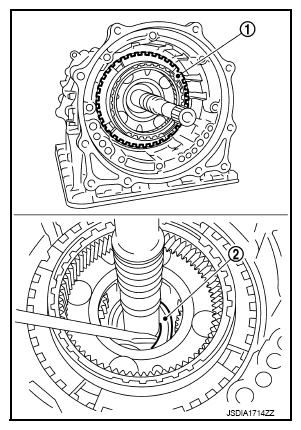

  46. Install input clutch assembly (with front carrier assembly and rear internal gear) (1) to transmission case.
    CAUTION: Check that the needle bearing (2) is securely positioned. If the needle bearing position is misaligned, adjust it to the specified position.
    Fig 46: Installing Input Clutch Assembly
    G07100730Courtesy of NISSAN MOTOR CO., U.S.A.

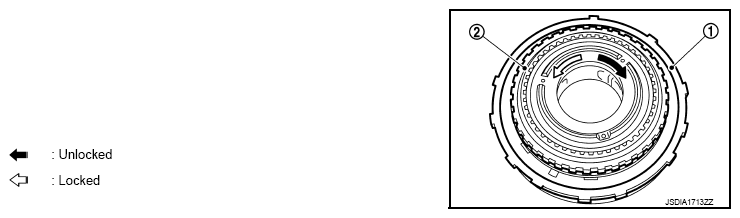

  47. Install 1st one-way clutch (1) to front brake hub (with under drive carrier) (2).
  48. Check operation of 1st one-way clutch.
    1. Hold 1st one-way clutch.
    2. Check front brake hub for correct locking and unlocking directions.
      Fig 47: Identifying 1St One-Way Clutch
      G07100731Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: If not shown in figure, check installation direction of 1st one-way clutch.
  49. Install under drive carrier (with 1st one-way clutch) (1) to transmission case.
    Fig 48: Identifying 1St One-Way Clutch
    G07100732Courtesy of NISSAN MOTOR CO., U.S.A.
  50. Install snap ring (1) to transmission case.
    CAUTION: Be careful not to damage snap ring.
    Fig 49: Identifying Snap Ring
    G07100733Courtesy of NISSAN MOTOR CO., U.S.A.

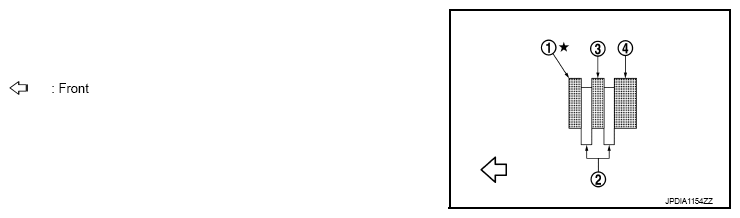

  51. Install front brake retaining plate (thin) (1), front brake drive plates (2), front brake driven plate (3), and front brake retaining plate (thick) (4) to transmission case.
    Fig 50: Identifying Front Brake Retaining Plate
    G07100734Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Check order of plates.
  52. Install needle bearing (1) to under drive carrier assembly.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 51: Identifying Needle Bearing
    G07100735Courtesy of NISSAN MOTOR CO., U.S.A.
  53. Install under drive sun gear (1) to under drive carrier assembly.
    Fig 52: Identifying Under Drive Sun Gear
    G07100736Courtesy of NISSAN MOTOR CO., U.S.A.

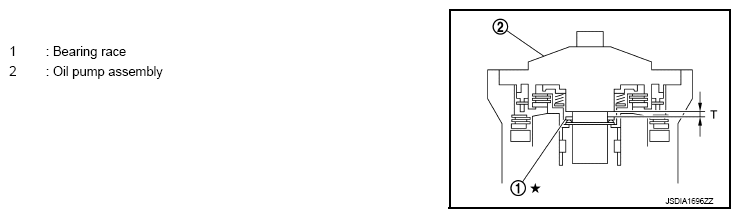

  54. Adjustment of total end play "T".
    • Measure clearance between bearing race (1) and oil pump cover (2).
    • Select proper thickness of bearing race so that end play is within specifications.
      Fig 53: Measuring Clearance Between Bearing Race And Oil Pump Cover
      G07100737Courtesy of NISSAN MOTOR CO., U.S.A.

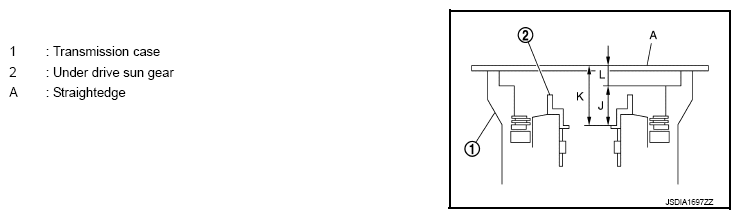

    1. Measure dimensions "K" and "L", and calculate dimension "J".
      Fig 54: Measuring Dimensions K And L
      G07100738Courtesy of NISSAN MOTOR CO., U.S.A.

      "J" : Distance between the oil pump fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.

      J = K - L

      1. Measure dimension "K" between the converter housing fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.
        CAUTION: Never change the straight edge installation position before the completion of "L" measurement.
        Fig 55: Measuring Dimension K Between Converter Housing Fitting Surface Of Transmission Case And Needle Bearing Mating Surface Of Under Drive Sun Gear
        G07100739Courtesy of NISSAN MOTOR CO., U.S.A.
      2. Measure dimension "L" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
      3. Measure dimension "K" and "L" in at least three places, and take the average.
      4. Calculate dimension "J".

        J = K - L

        Fig 56: Measuring Dimension L Between Converter Housing Fitting Surface Of Transmission Case And Oil Pump Fitting Surface Of Transmission Case
        G07100740Courtesy of NISSAN MOTOR CO., U.S.A.

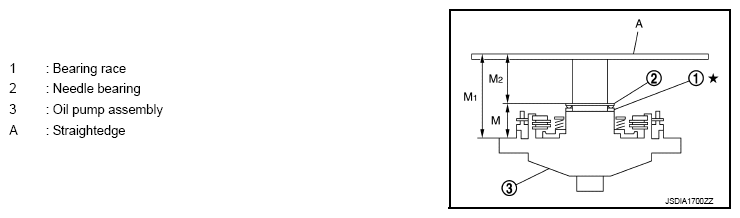

    2. Measure dimensions "M1" and "M2", and calculate dimension "M".
      Fig 57: Measuring Dimensions M1 And M2
      G07100741Courtesy of NISSAN MOTOR CO., U.S.A.

      "M" : Distance between the transmission case fitting surface of oil pump and the needle bearing on oil pump.

      M = M1- M2

      1. Place bearing race (1) and needle bearing (2) on oil pump assembly (3).
        Fig 58: Identifying Bearing Race
        G07100742Courtesy of NISSAN MOTOR CO., U.S.A.

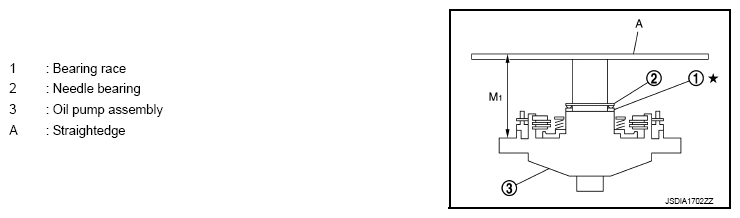

      2. Measure dimension "M1" between the transmission case fitting surface of oil pump and the end of oil pump.
        Fig 59: Measuring Dimension M1 Between Transmission Case Fitting Surface Of Oil Pump And End Of Oil Pump
        G07100743Courtesy of NISSAN MOTOR CO., U.S.A.
        CAUTION: Measure dimension "M1" in at least three places, and take the average.

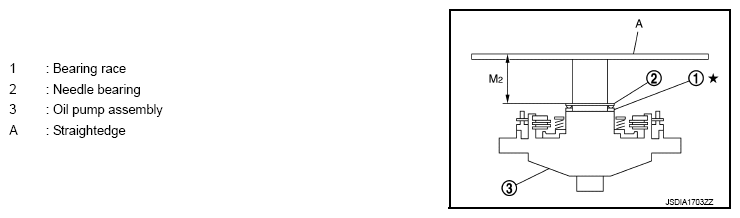

      3. Measure dimension "M2" between the needle bearing on oil pump and the end of oil pump.
        Fig 60: Measuring Dimension M2 Between Needle Bearing On Oil Pump And End Of Oil Pump
        G07100744Courtesy of NISSAN MOTOR CO., U.S.A.
        CAUTION: Measure dimension "M2" in at least three places, and take the average.
      4. Calculate dimension "M".

        M = M1- M2

    3. Adjust total end play "T".
      Fig 61: Measuring Dimension M2
      G07100745Courtesy of NISSAN MOTOR CO., U.S.A.

      T = J - M

      Total end play "T" : Refer to  "TOTAL END PLAY ".

      • Select proper thickness of bearing race so that total end play is within specifications.

        Bearing races : Refer to  "TOTAL END PLAY ".

  55. Adjustment of front brake clearance "C".
    • Measure clearance between front brake piston (1) and front brake retaining plate (2).
    • Select proper thickness of front brake retaining plat so that clearance is within specifications.
      Fig 62: Measuring Clearance Between Front Brake Piston And Front Brake Retaining Plate
      G07100746Courtesy of NISSAN MOTOR CO., U.S.A.

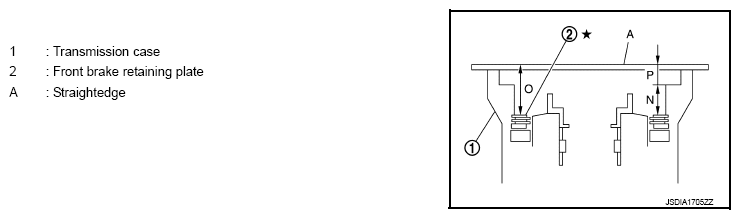

    1. Measure dimensions "O" and "P", and calculate dimension "N".
      Fig 63: Measuring Dimensions O And P
      G07100747Courtesy of NISSAN MOTOR CO., U.S.A.

      "N" : Distance between the oil pump fitting surface of transmission case and the front brake retaining plate.

      N = O - P

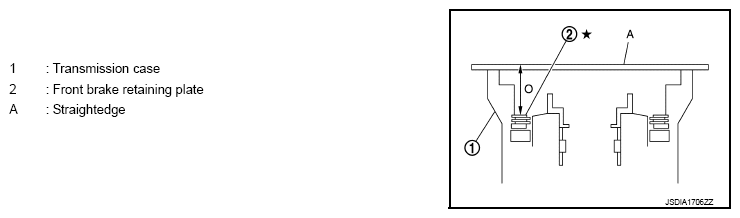

      1. Measure dimension "O" between the converter housing fitting surface of transmission case and the front brake retaining plate.
        Fig 64: Measuring Dimension O Between Converter Housing Fitting Surface Of Transmission Case And Front Brake Retaining Plate
        G07100748Courtesy of NISSAN MOTOR CO., U.S.A.
        CAUTION: Never change the straight edge installation position before the completion of "P" measurement.

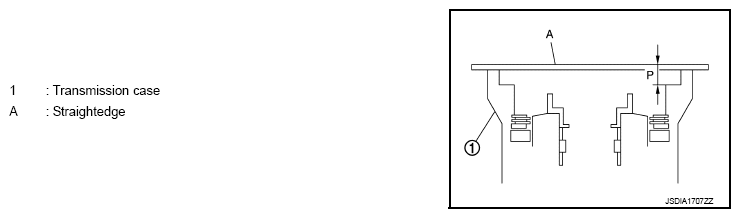

      2. Measure dimension "P" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
        Fig 65: Measuring Dimension P Between Converter Housing Fitting Surface Of Transmission Case And Oil Pump Fitting Surface Of Transmission Case
        G07100749Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Measure dimension "O" and "P" in at least three places, and take the average.
      4. Calculate dimension "N".

        N = O - P

    2. Measure dimensions "Q1" and "Q2", and calculate dimension "Q".
      Fig 66: Measuring Dimensions Q1 And Q2
      G07100750Courtesy of NISSAN MOTOR CO., U.S.A.

      "Q" : Distance between the transmission case fitting surface of oil pump and the front brake piston.

      Q = Q1- Q2

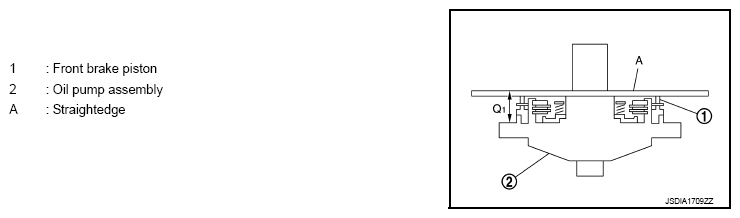

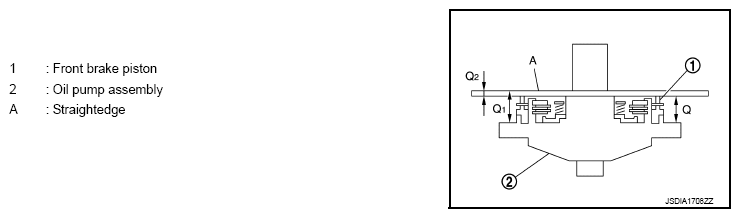

      1. Measure dimension "Q1" between the transmission case fitting surface of oil pump and the straightedge on front brake piston.
        Fig 67: Measuring Dimension Q1 Between Transmission Case Fitting Surface Of Oil Pump And Straightedge On Front Brake Piston
        G07100751Courtesy of NISSAN MOTOR CO., U.S.A.
        CAUTION: Measure dimension "M2" in at least three places, and take the average.

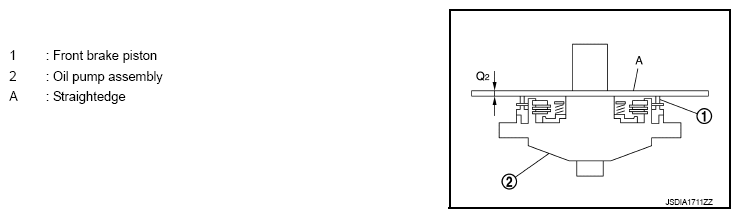

      2. Measure dimension "Q2" of the straightedge.
        Fig 68: Measuring Dimension Q2 Of Straightedge
        G07100752Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Calculate dimension "Q".

        Q = Q1- Q2

    3. Adjust front brake clearance "C".

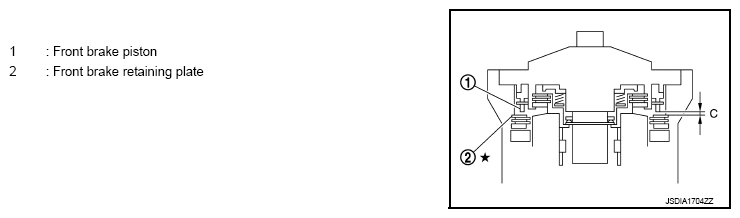

      Fig 69: Checking Front Brake Clearance
      G07100753Courtesy of NISSAN MOTOR CO., U.S.A.

      C = N - Q

      Front brake clearance "C" : Refer to  "FRONT BRAKE CLEARANCE ".

      • Select proper thickness of retaining plate so that front brake clearance is within specifications.

        Retaining plate : Refer to  "FRONT BRAKE CLEARANCE ".

  56. Remove under drive sun gear (1) from under drive carrier assembly.
    Fig 70: Identifying Under Drive Sun Gear
    G07100754Courtesy of NISSAN MOTOR CO., U.S.A.
  57. Install needle bearing (1) to under drive sun gear.
    CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".
    Fig 71: Removing Needle Bearing
    G07100755Courtesy of NISSAN MOTOR CO., U.S.A.
  58. Install O-ring (1) to oil pump assembly.
    Fig 72: Identifying O-Ring
    G07100756Courtesy of NISSAN MOTOR CO., U.S.A.
  59. Install seal ring (1) to oil pump assembly.
    Fig 73: Identifying Seal Ring
    G07100757Courtesy of NISSAN MOTOR CO., U.S.A.
  60. Install bearing race (1) to oil pump assembly.
    Fig 74: Identifying Bearing Race
    G07100758Courtesy of NISSAN MOTOR CO., U.S.A.
  61. Install under drive sun gear (with needle bearing) (1) to oil pump assembly (2).
    Fig 75: Identifying Needle Bearing
    G07100759Courtesy of NISSAN MOTOR CO., U.S.A.
  62. Install oil pump assembly (with under drive sun gear) to transmission case.
    CAUTION: Apply ATF to oil pump bearing.
    Fig 76: Identifying Oil Pump Assembly
    G07100760Courtesy of NISSAN MOTOR CO., U.S.A.

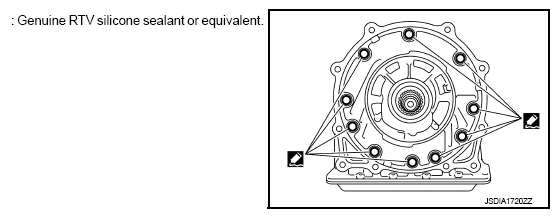

  63. Apply recommended sealant to oil pump assembly as shown in the figure.

    Genuine RTV silicone sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    Fig 77: Applying Sealant To Oil Pump Assembly
    G07100761Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.
  64. Tighten oil pump bolts to the specified torque.
    Fig 78: Identifying Oil Pump Bolts
    G07100762Courtesy of NISSAN MOTOR CO., U.S.A.
  65. Install O-ring to input clutch assembly.
    Fig 79: Identifying O-Ring
    G07100763Courtesy of NISSAN MOTOR CO., U.S.A.
  66. Install converter housing to transmission case, and tighten converter housing bolts to the specified torque.
    Fig 80: Identifying Converter Housing Bolts
    G07100764Courtesy of NISSAN MOTOR CO., U.S.A.
  67. Connect TCM connector (A) to joint connector.
    Fig 81: Identifying TCM Connector
    G07100765Courtesy of NISSAN MOTOR CO., U.S.A.
  68. Install joint connector (1) to the control valve & TCM.
    CAUTION: Apply ATF to O-ring of joint connector.
    Fig 82: Identifying Joint Connector
    G07100766Courtesy of NISSAN MOTOR CO., U.S.A.
  69. Install the control valve & TCM (1) to transmission case.
    Fig 83: Identifying Control Valve & TCM
    G07100767Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Make sure that input speed sensor securely installs input speed sensor holes (A).
    • Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve & TCM.
    • Adjust A/T assembly harness connector of the control valve & TCM to terminal hole of transmission case.
      Fig 84: Identifying Input Speed Sensor Holes
      G07100768Courtesy of NISSAN MOTOR CO., U.S.A.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.
      Fig 85: Identifying Manual Valve
      G07100769Courtesy of NISSAN MOTOR CO., U.S.A.

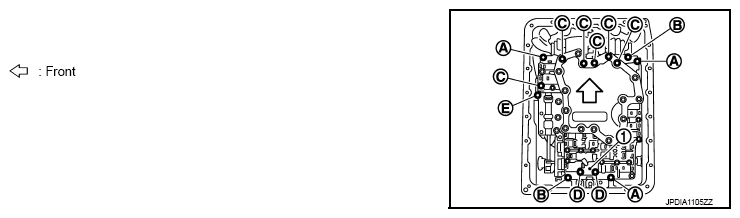

  70. Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.
    Fig 86: Identifying Control Valve & TCM Bolts And Clips
    G07100770Courtesy of NISSAN MOTOR CO., U.S.A.
    BOLT SPECIFICATION

    Bolt symbol Length mm (in) Number of bolts
    A 43 (1.69) 3
    B 40 (1.57) 2
    C 54 (2.13) 6
    D 50 (1.97) 2
    E(1) 50 (1.97) 1
    (1) Reamer bolt
  71. Connect output speed sensor connector (A).
  72. Engage output speed sensor harness with terminal clips.
    Fig 87: Identifying Terminal Clips
    G07100771Courtesy of NISSAN MOTOR CO., U.S.A.
  73. Pull down joint connector (1).
    CAUTION: Be careful not to damage connector.
    Fig 88: Identifying Joint Connector
    G07100772Courtesy of NISSAN MOTOR CO., U.S.A.
  74. Install snap ring (1) to joint connector (2).
    Fig 89: Identifying Snap Ring
    G07100773Courtesy of NISSAN MOTOR CO., U.S.A.
  75. Install magnets (1) in oil pan.
  76. Install oil pan gasket to transmission case.
    CAUTION:
    • Never reuse oil pan gasket.
    • Install it in the direction to align hole positions.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
      Fig 90: Identifying Magnets
      G07100774Courtesy of NISSAN MOTOR CO., U.S.A.
  77. Install oil pan (2) and clips (1) to transmission case.
    Fig 91: Identifying Oil Pan And Clips
    G07100775Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Be careful not to pinch harnesses.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

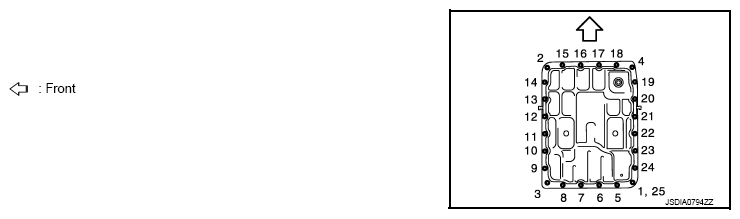

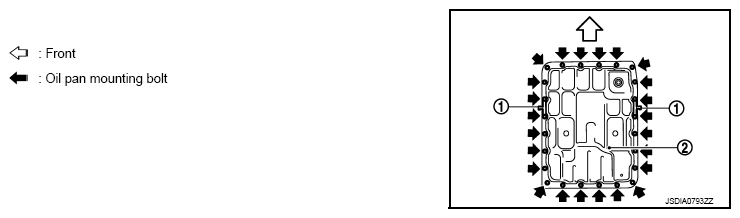

  78. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.
    Fig 92: Identifying Oil Pan Mounting Bolts With Tightening Sequence
    G07100776Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never reuse oil pan mounting bolts.
  79. Install drain plug to oil pan. Tighten drain plug to the specified torque.
    CAUTION: Never reuse drain plug gasket.
  80. Pour ATF into torque converter.
    • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
    • When reusing old torque converter, add the same amount of ATF as was drained.
      Fig 93: Identifying ATF Into Torque Converter
      G07100777Courtesy of NISSAN MOTOR CO., U.S.A.
  81. Install torque converter while aligning notches of torque converter with notches of oil pump.
    CAUTION: Install torque converter while rotating it.
    Fig 94: Identifying Torque Converter
    G07100778Courtesy of NISSAN MOTOR CO., U.S.A.

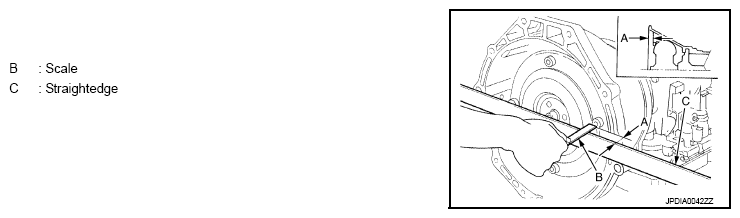

  82. Measure dimension "A" to make sure that torque converter is in proper position.
    Fig 95: Measuring Dimension A
    G07100779Courtesy of NISSAN MOTOR CO., U.S.A.

    Dimension "A" : Refer to  "TORQUE CONVERTER ".

scientia non olet · About LEMON Manuals
