Board-On Lift

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Check vehicle is empty when lifting.
  • The board-on lift attachment (A) set at front end of vehicle should be set on the front of the sill under the front door opening.
  • Position attachments at front and rear ends of board-on lift.

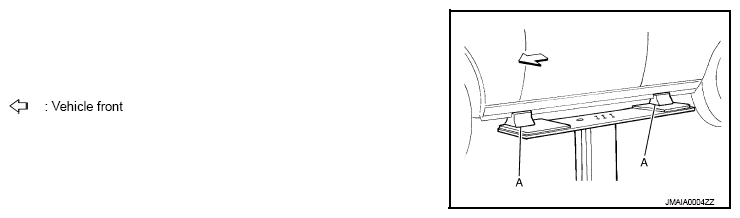

    Fig 1: Identifying Board-On Lift Attachment
    G07099059Courtesy of NISSAN MOTOR CO., U.S.A.
