Exploded View

WARNING: This page is about a different car, the 2012 Infiniti G25. However, it is still accessible from the selected car via links, so may be relevant.

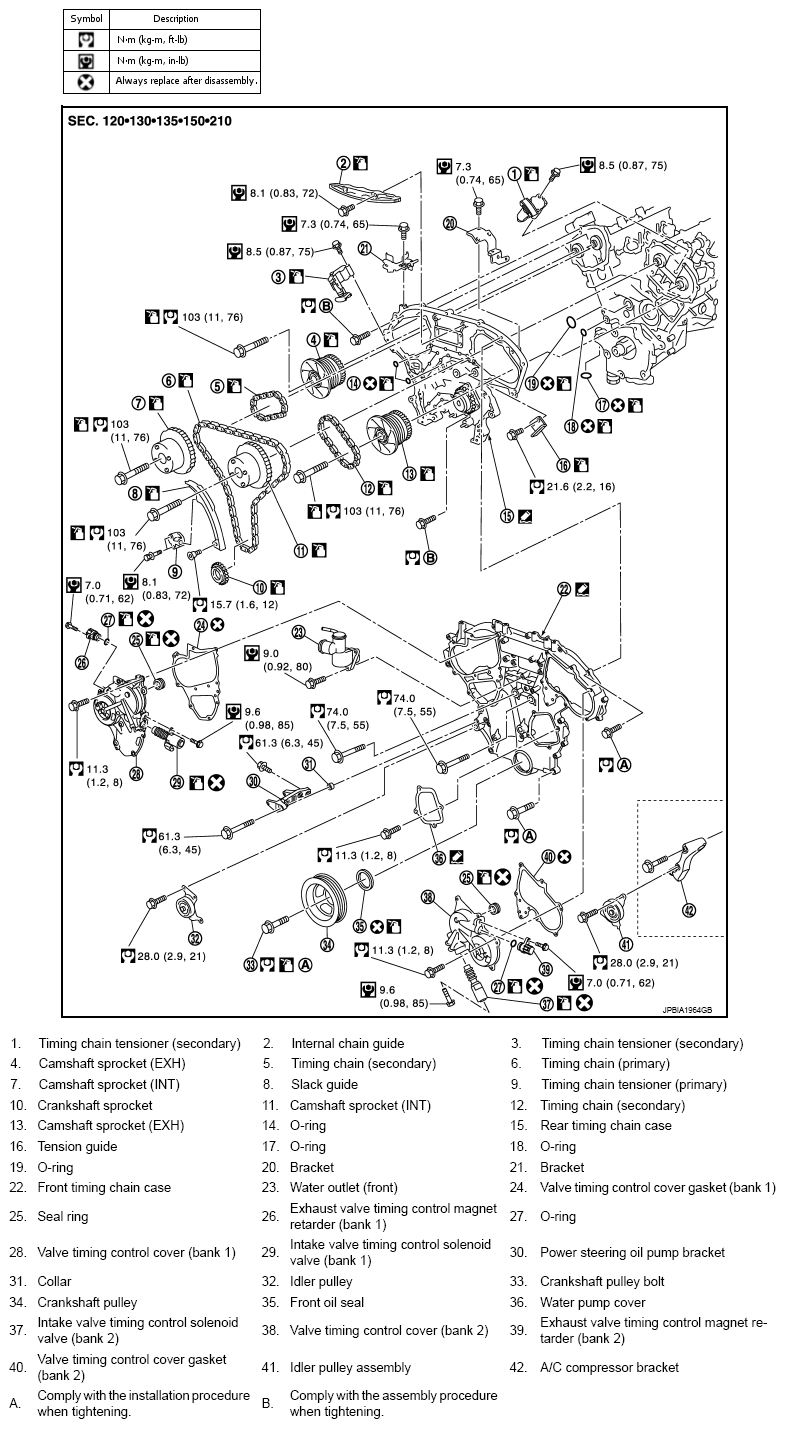

Fig 1: Exploded View Of Rear Timing Chain Case With Torque Specifications
G08456355Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
