Main Bearing Selection Table

WARNING: This page is about a different car, the 2012 Infiniti G25. However, it is still accessible from the selected car via links, so may be relevant.

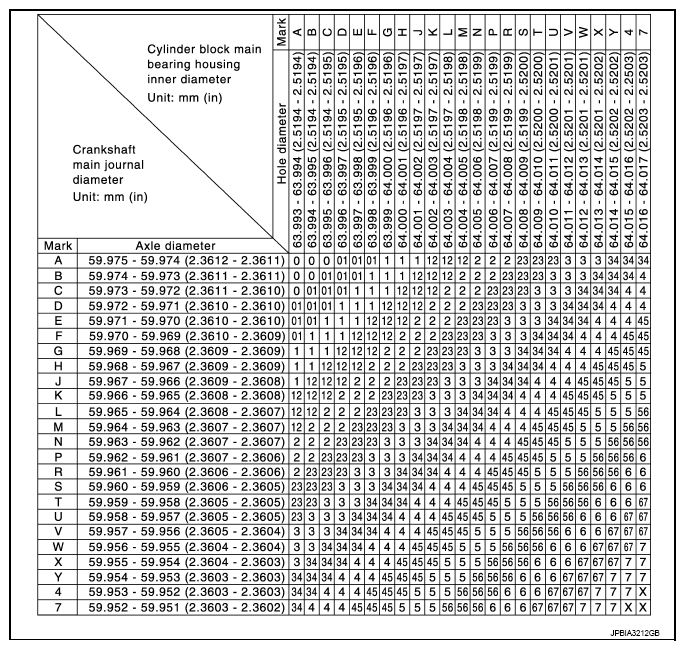

Fig 1: Main Bearing Selection Chart
G08456458Courtesy of NISSAN NORTH AMERICA, INC.
