Exploded View

WARNING: This page is about a different car, the 2012 Infiniti G25. However, it is still accessible from the selected car via links, so may be relevant.

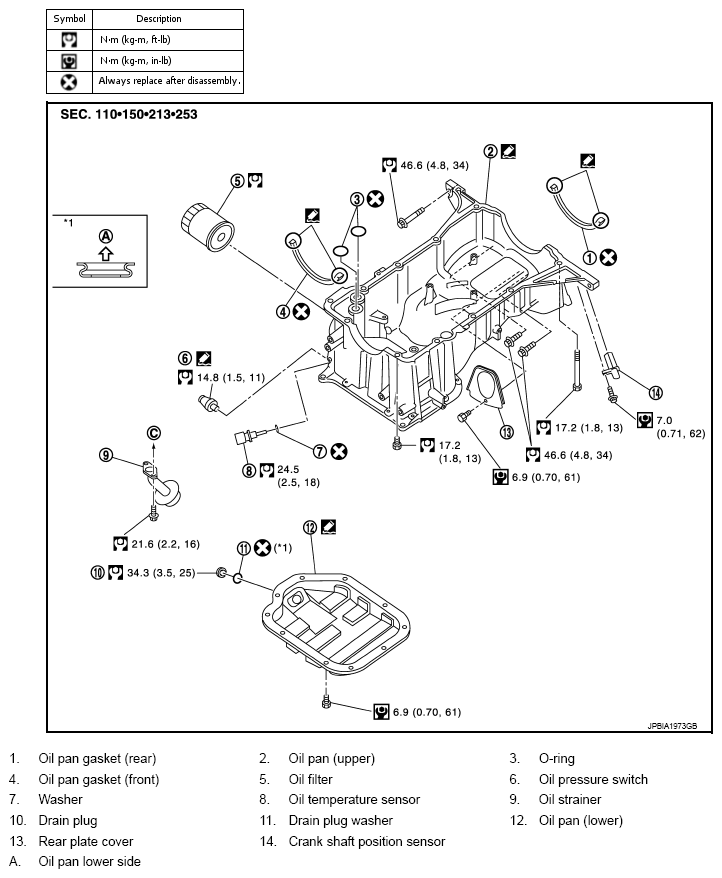

Fig 1: Exploded View Of Lower Oil Pan With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

NOTE: The above figure shows 2WD models.
