MEMORY FUNCTION: Component Parts Location

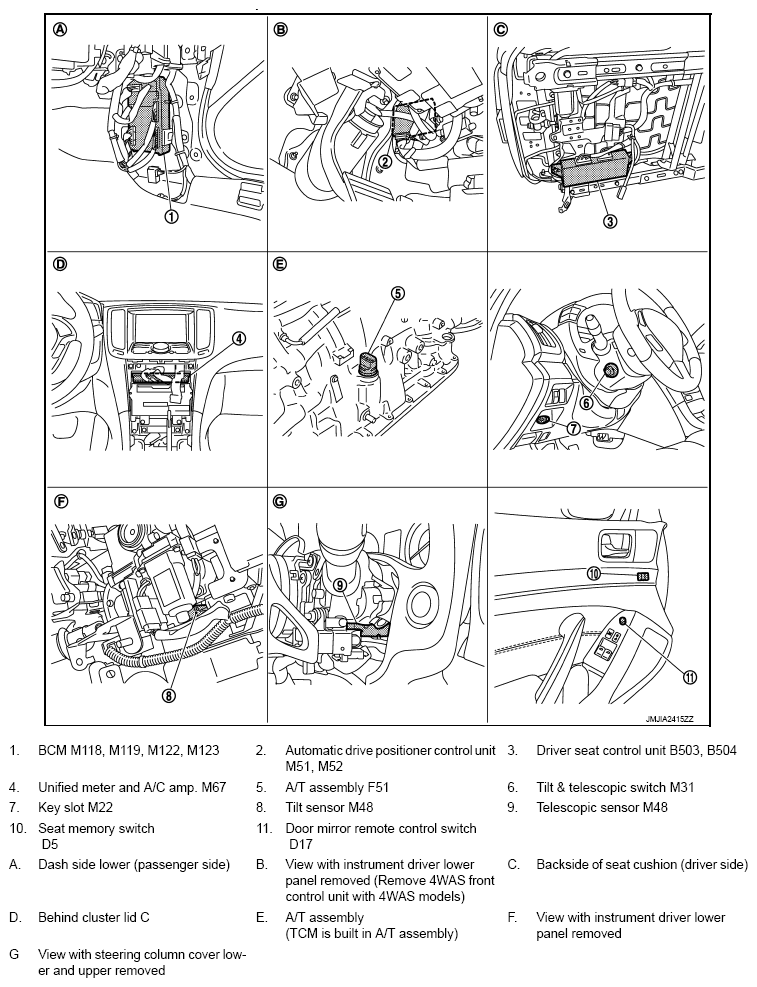

Fig 1: Memory Function Components Location (1 Of 3)
G08234553Courtesy of NISSAN NORTH AMERICA, INC.

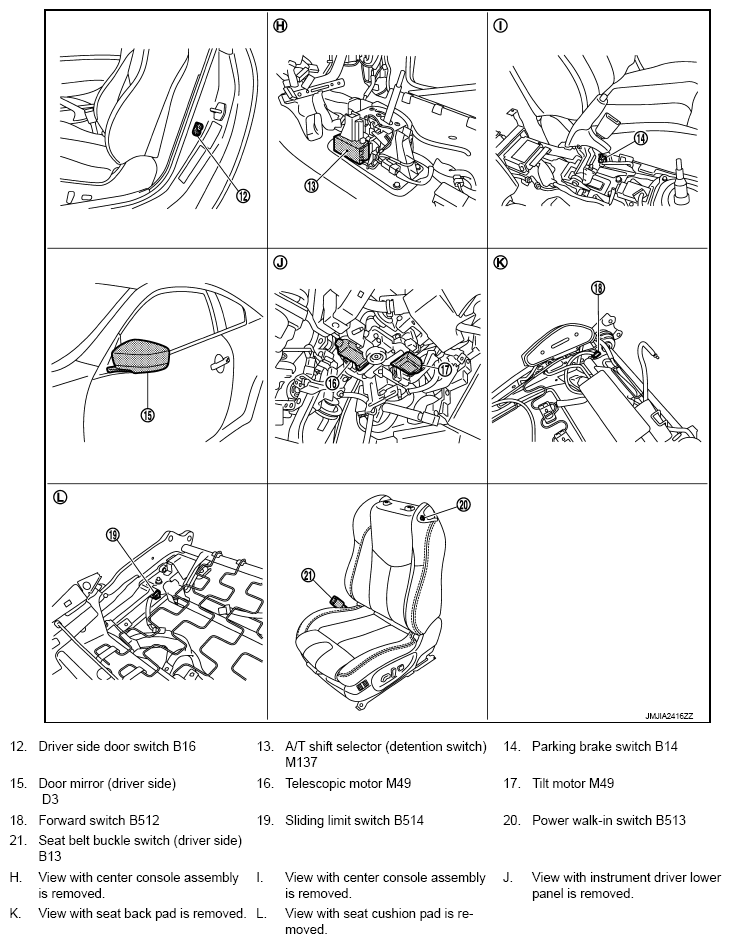

Fig 2: Memory Function Components Location (2 Of 3)
G08234554Courtesy of NISSAN NORTH AMERICA, INC.

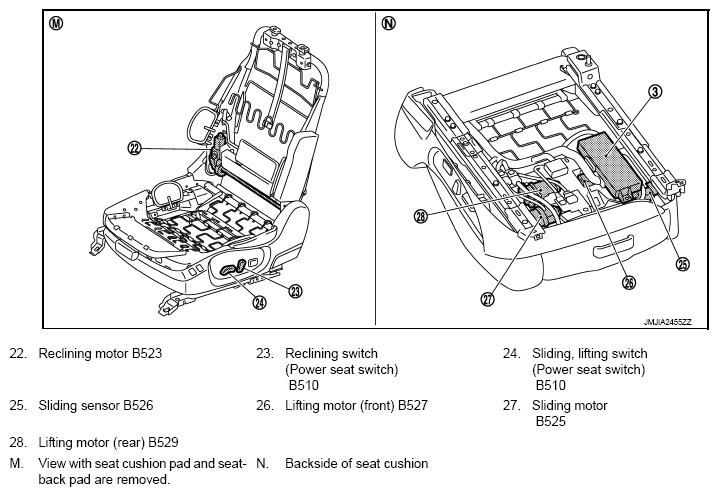

Fig 3: Memory Function Components Location (3 Of 3)
G08234555Courtesy of NISSAN NORTH AMERICA, INC.
