System Diagram

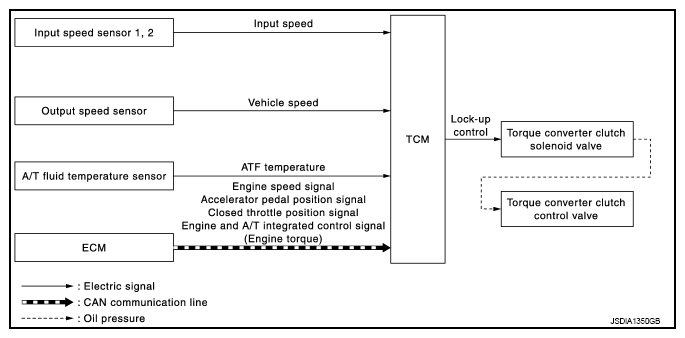

Fig 1: Identifying Lock-Up Control System Diagram

G08446581

Courtesy of NISSAN NORTH AMERICA, INC.
