Front Suspension (Convertible)
>>
Unit Removal And Installation
>>
Front Suspension Member
>>
Exploded View
Exploded View

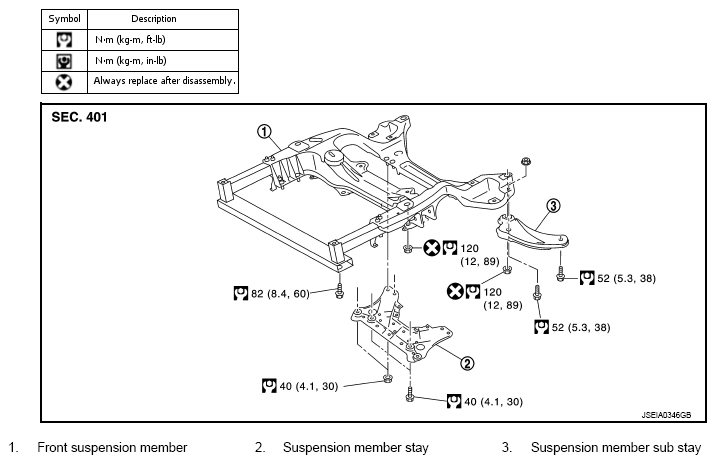

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
