Wiring Diagram - CONSULT/GST CHECKING SYSTEM -

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to CONNECTOR INFORMATION .

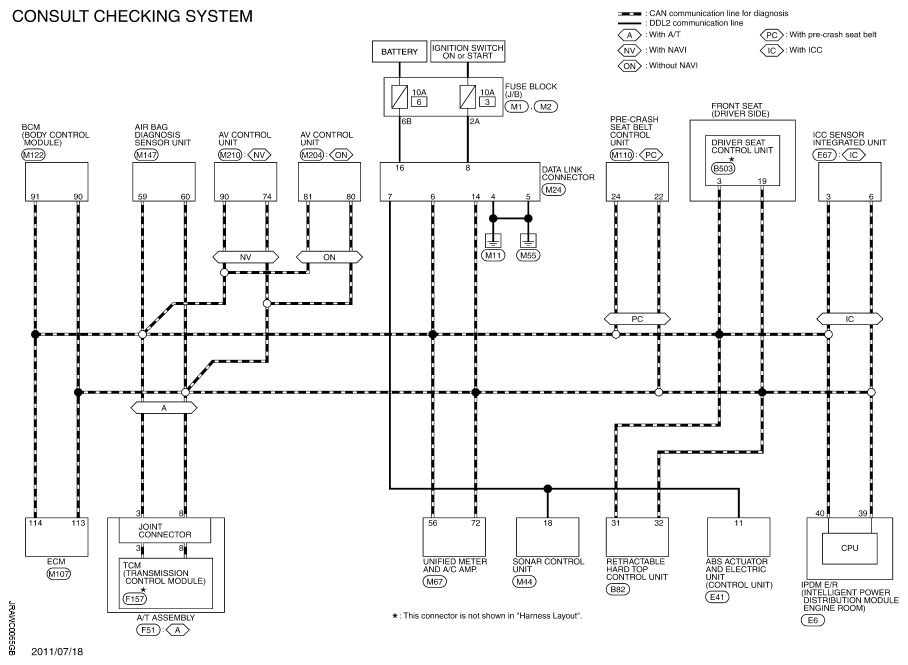

Fig 1: Consult/GST Checking System - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
