Section 60 (Power Control System (Power Distribution System) (Coupe))
>>
System Description
>>
Power Distribution System
>>
Component Parts Location
Component Parts Location
WARNING:
This page is about a different variant/trim than selected.

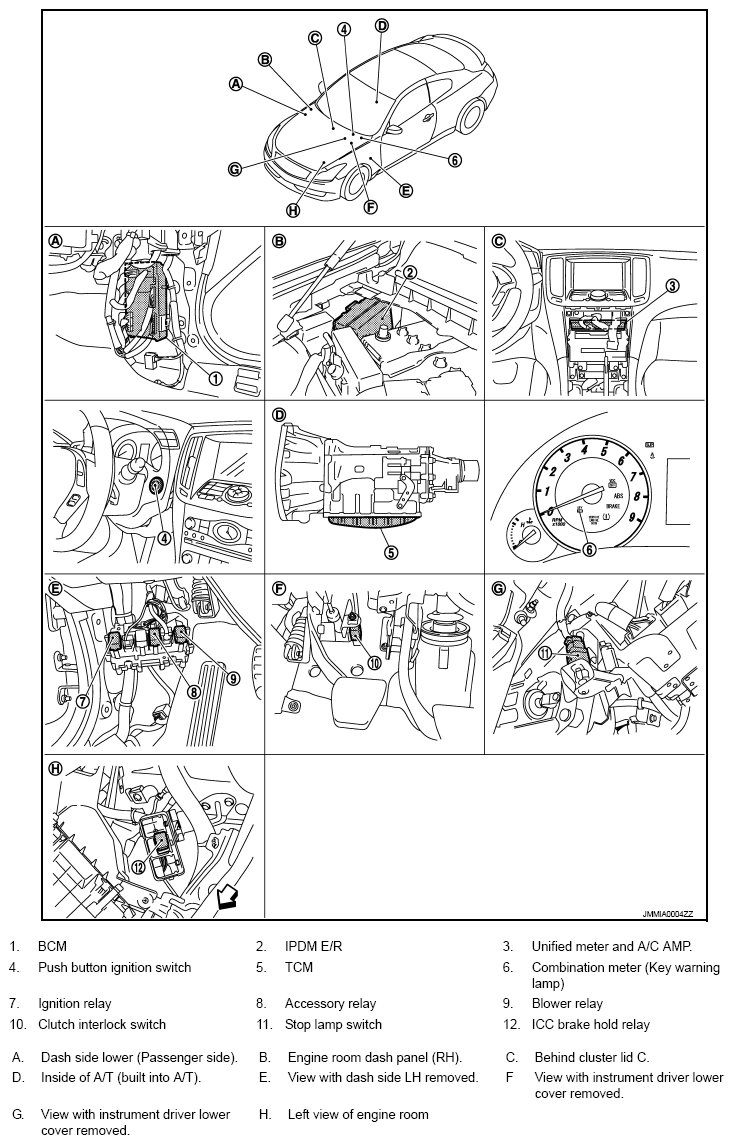

Fig 1: Power Distribution System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
