Exploded View

WARNING: This page is about a different variant/trim than selected.

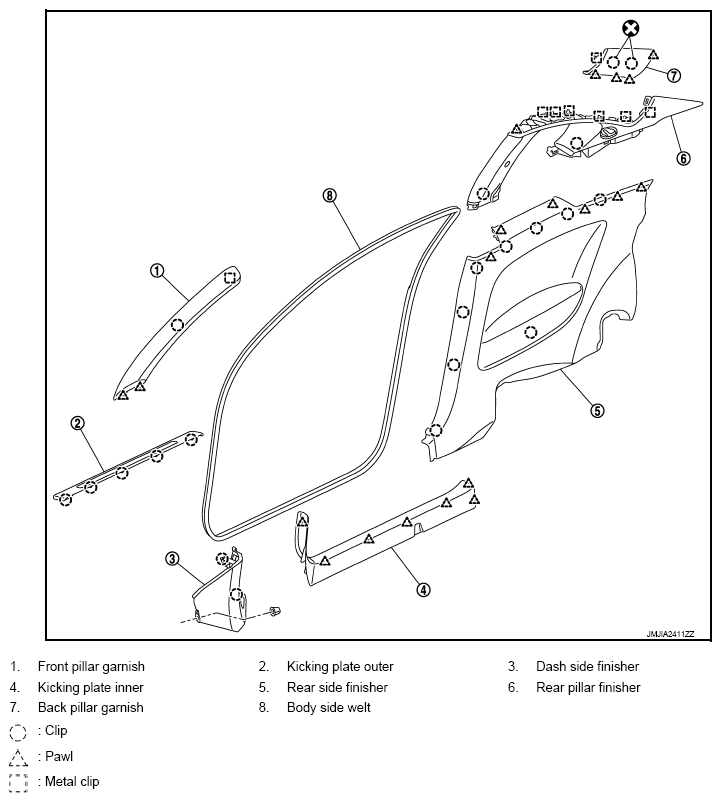

Fig 1: Exploded View Of Body Side Trim
G08238357Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.
