AWD: Exploded View: Disassembly

WARNING: This page is about a different variant/trim than selected.

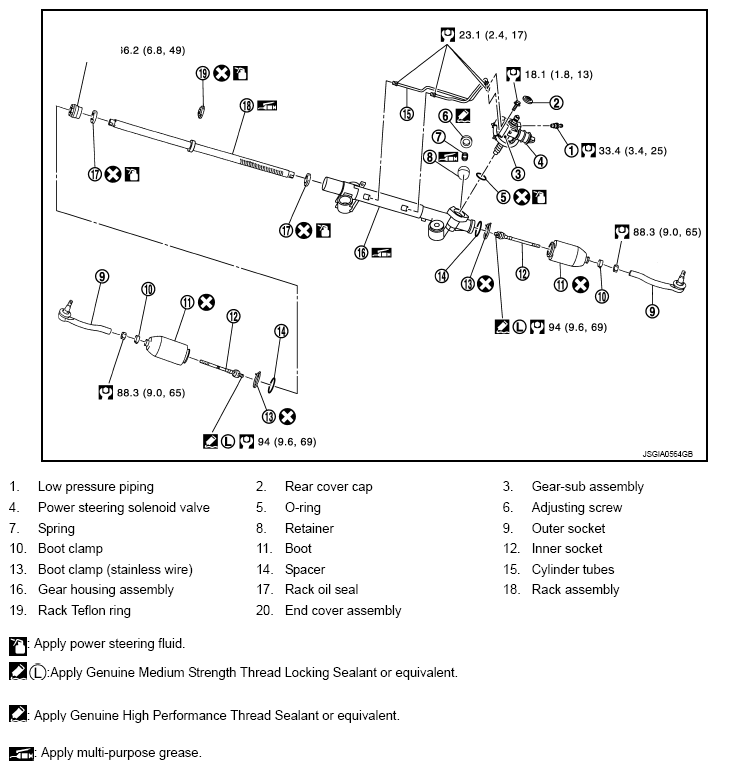

Fig 1: Disassembled View Of Steering Gear And Linkage (AWD) With Torque Specifications
G08234216Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
