2WD: Exploded View

WARNING: This page is about a different variant/trim than selected.

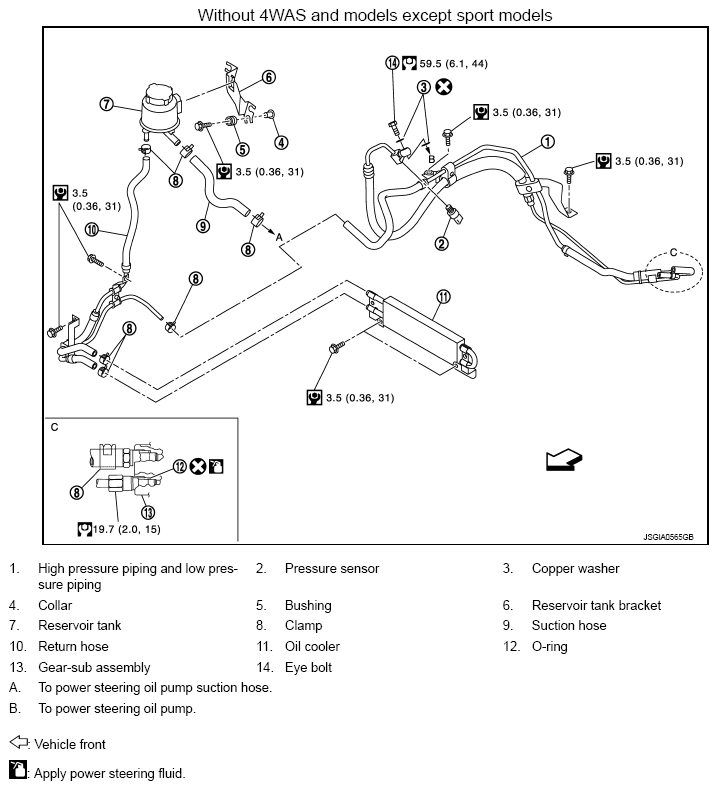

Fig 1: Exploded View Of Hydraulic Line (2WD Without 4WAS And Sport Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

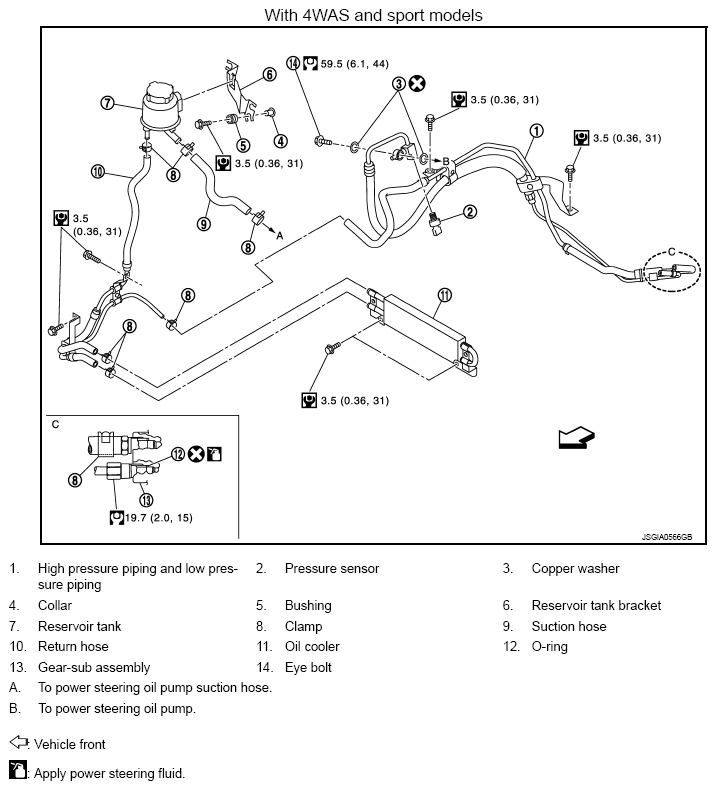

Fig 2: Exploded View Of Hydraulic Line (2WD With 4WAS And Sport Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
