Section 101 (Engine Mechanical (Sedan))
>>
Unit Removal And Installation
>>
Engine Assembly
>>
2WD
>>
2WD: Exploded View
2WD: Exploded View
WARNING:
This page is about a different variant/trim than selected.

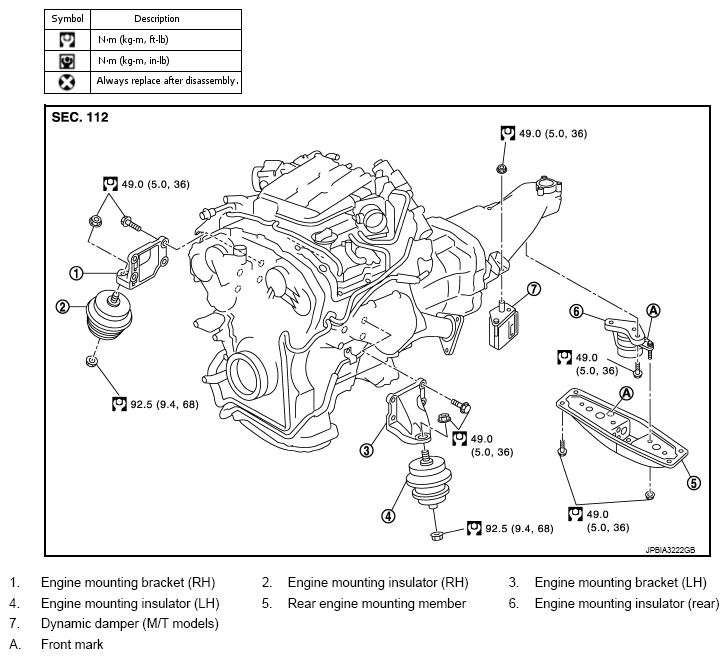

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
