Exploded View

WARNING: This page is about a different variant/trim than selected.

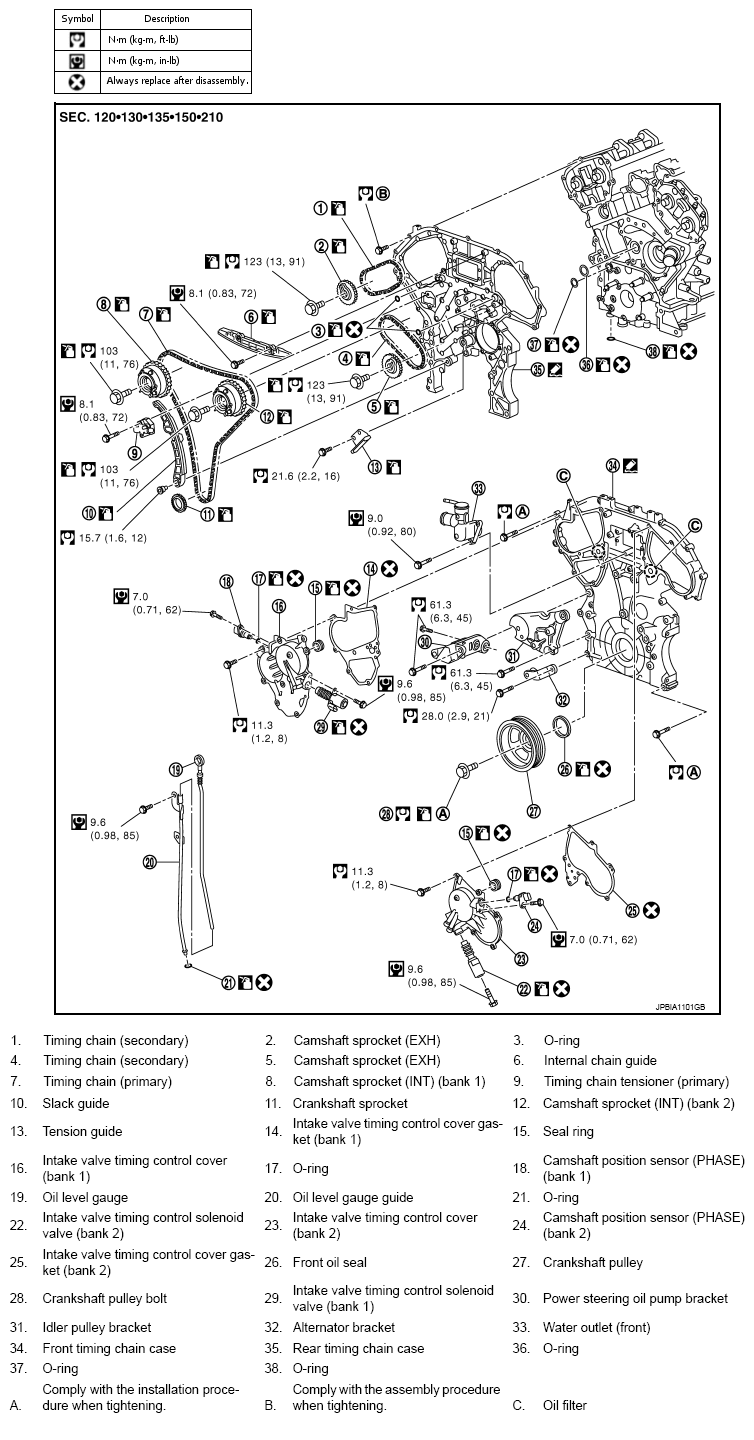

Fig 1: Exploded View Of Rear Timing Chain Case With Torque Specifications
G08456653Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
