Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk floor spacer RH. Refer to "EXPLODED VIEW ".
  2. Remove nuts (A) from the trunk room RH, and remove TEL adapter unit and satellite radio tuner (1) from trunk room side.

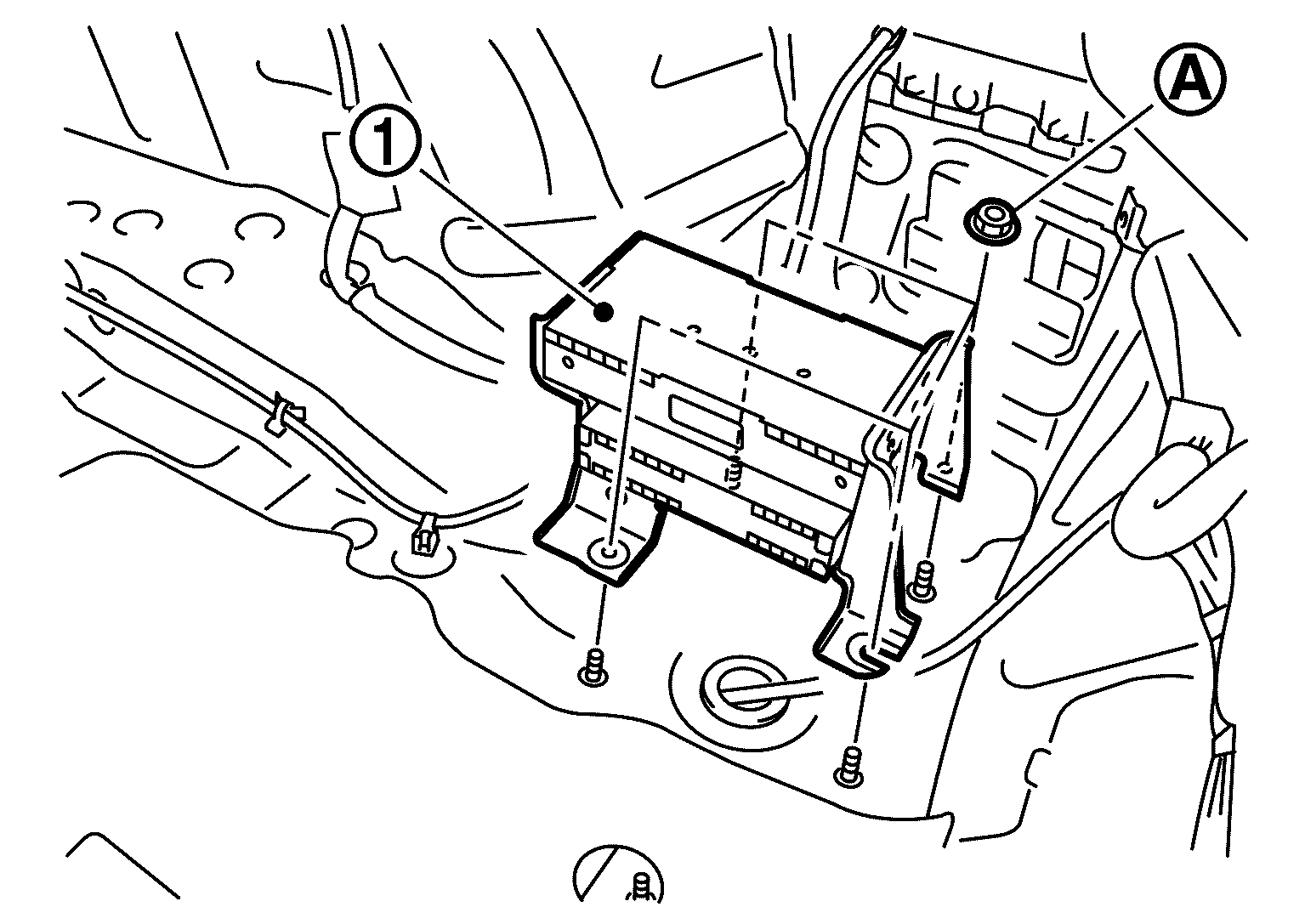

    Fig 1: Identifying TEL Adapter Unit And Satellite Radio Tuner With Nuts
    G05738459Courtesy of NISSAN MOTOR CO., U.S.A.
