Exploded View: Disassembly

WARNING: This page is about a different car, the 2010 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

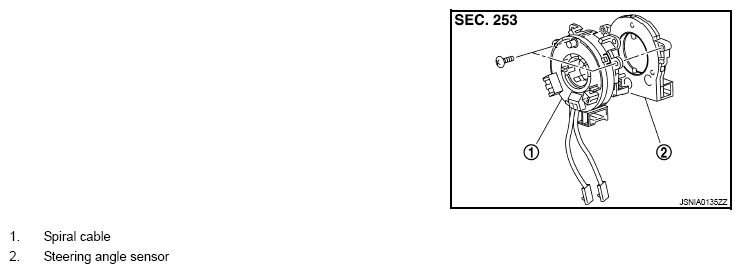

Fig 1: Identifying Steering Angle Sensor And Spiral Cable
G06625221Courtesy of NISSAN MOTOR CO., U.S.A.
