Exploded View

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

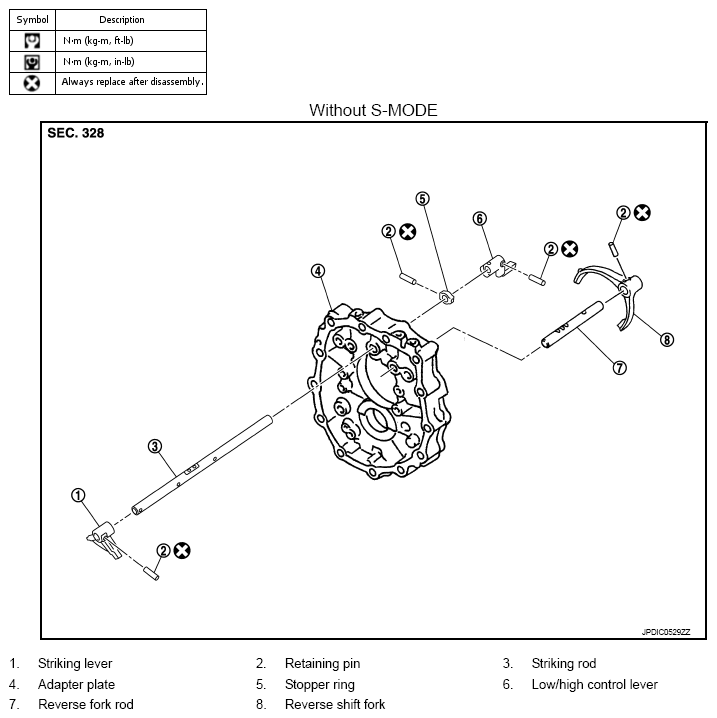

Fig 1: Exploded View Of Shift Fork & Fork Rod (Without S-MODE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.

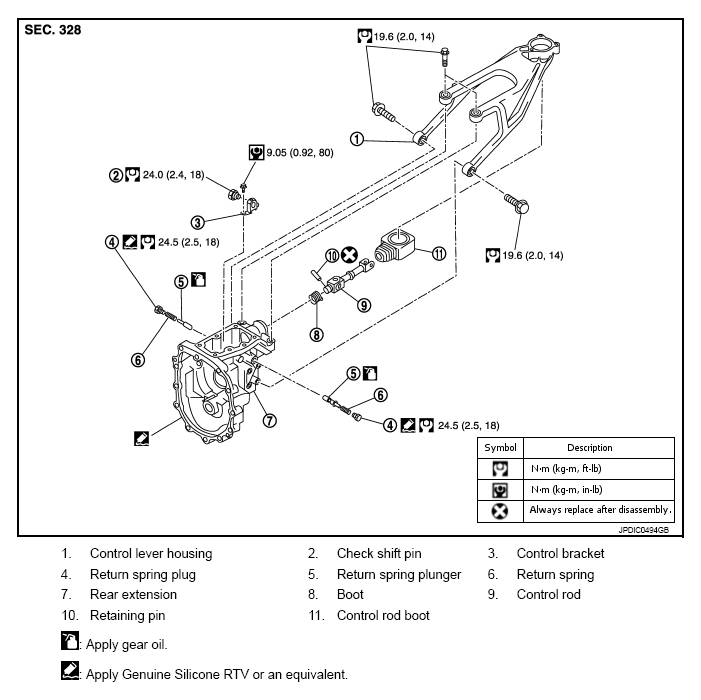

Fig 2: Exploded View Of Shift Fork & Fork Rod With Torque Specifications (With S-MODE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.

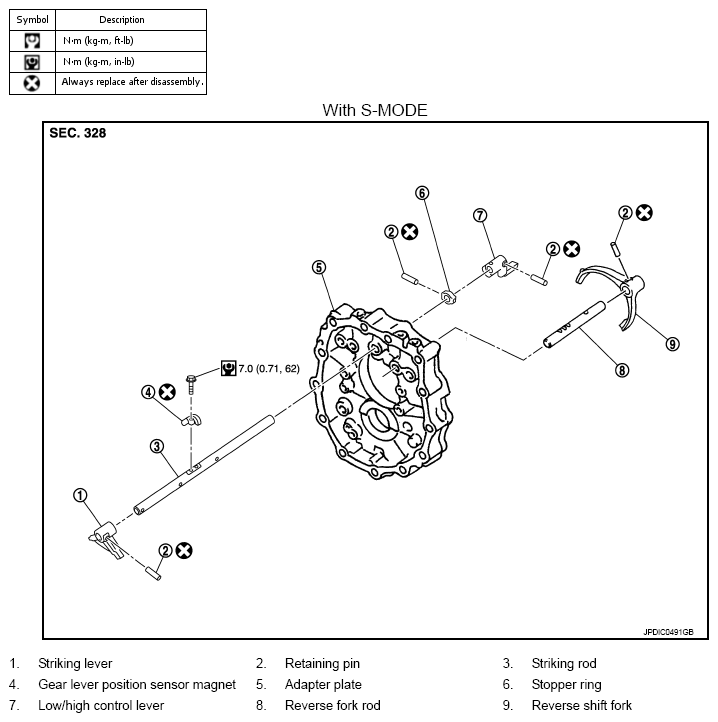

Fig 3: Exploded View Of Shift Fork & Fork Rod With Torque Specifications (With S-MODE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
