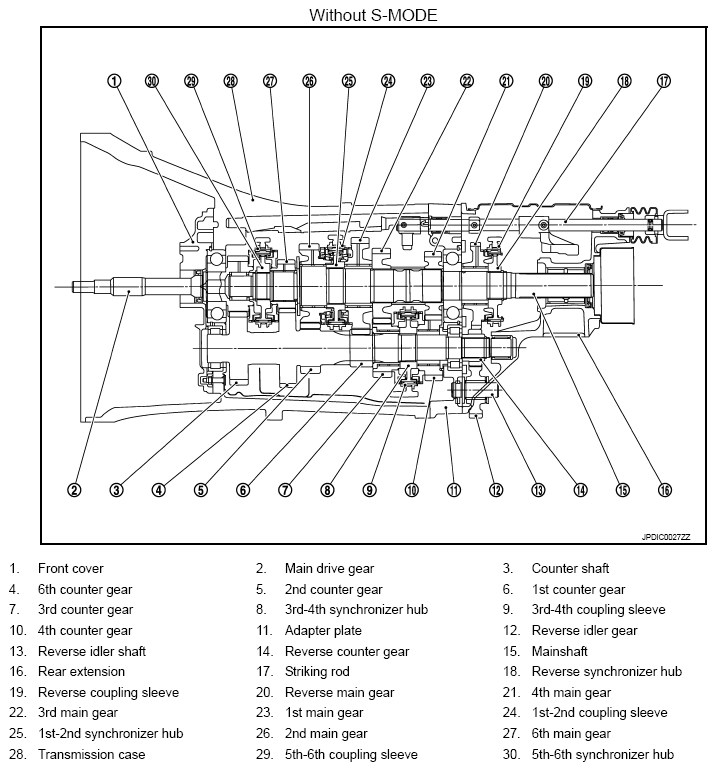

Fig 1: Sectional View Of Automatic Transmission (Without S-MODE)
Courtesy of NISSAN MOTOR CO., U.S.A.

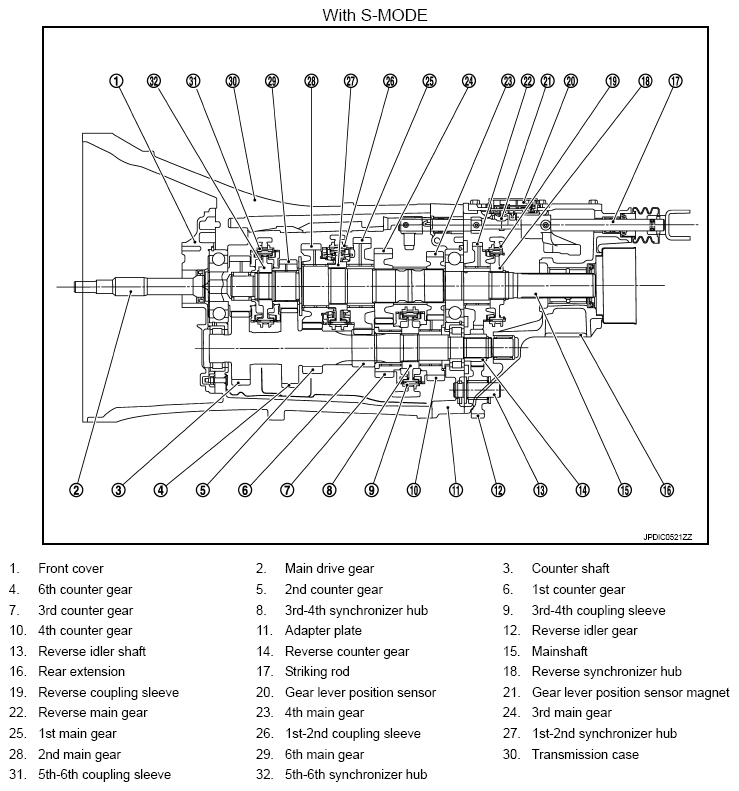

Fig 2: Sectional View Of Automatic Transmission (With S-MODE)
