Engine Control System - Introduction (1 Of 2) (Convertible)
>>
System Description
>>
Evaporative Emission System
>>
System Description
>>
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing

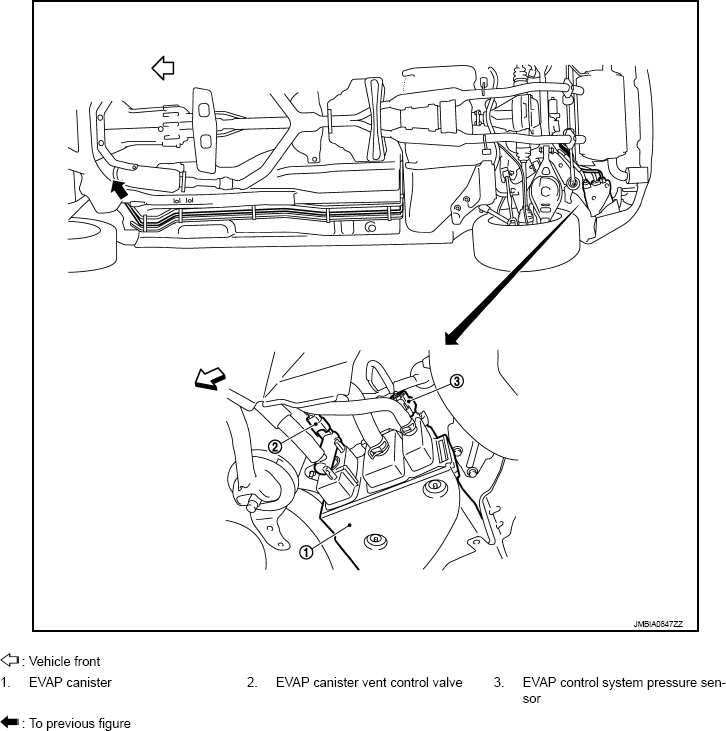

Fig 1: Evaporative Emission Line Drawing (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

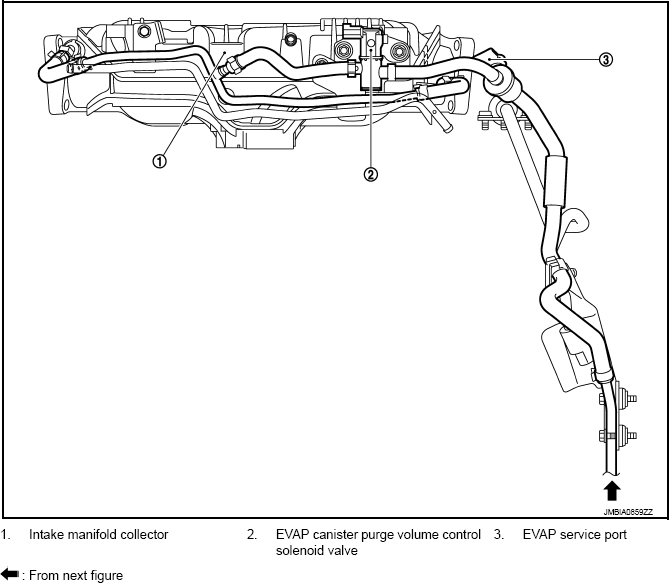

Fig 2: Evaporative Emission Line Drawing (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
