Exhaust System (Convertible)
>>
Removal And Installation
>>
Exhaust System
>>
Exploded View
Exploded View

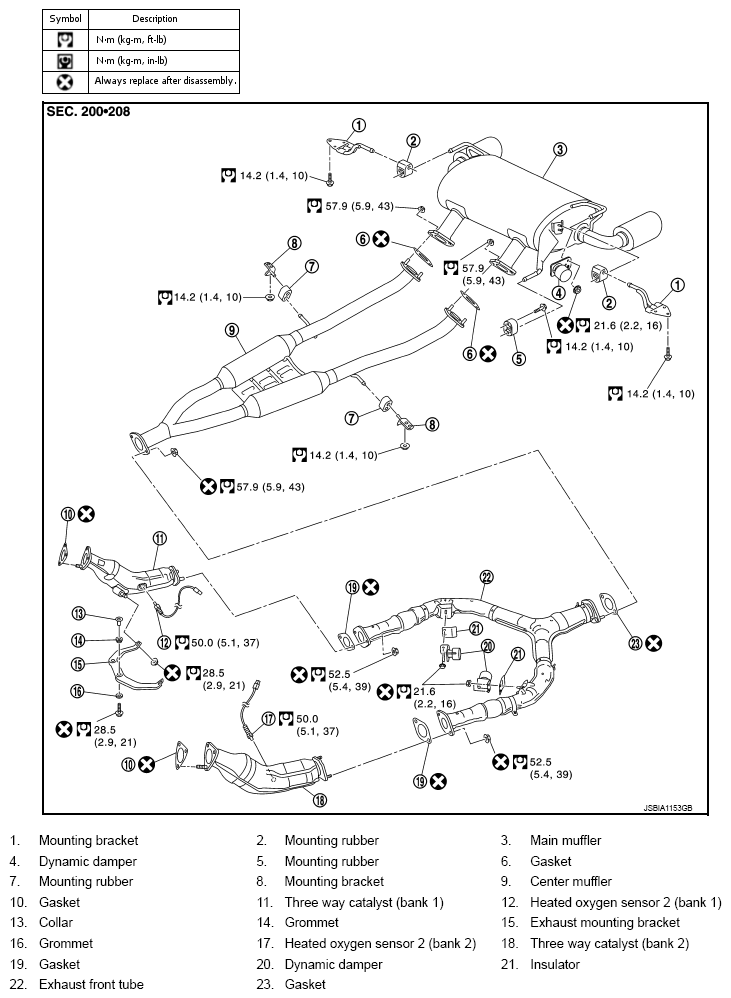

Fig 1: Exploded View Of Exhaust System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
