Disassembly and Assembly: Assembly

1. Install new O-rings (1) onto cylinder block.
   Fig 1: Identifying O-Rings Onto Cylinder Block

   Courtesy of NISSAN NORTH AMERICA, INC.
   CAUTION: Do not reuse O-rings.
2. Apply liquid gasket with the tube presser (commercial service tool) to rear timing chain case back side as shown in the figure.

   Use Genuine RTV Silicone Sealant or equivalent  . Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

   CAUTION:

   • For "A" in the figure, completely wipe off liquid gasket extended on a portion touching at engine coolant.
   • Apply liquid gasket on installation position of water pump and cylinder head completely.

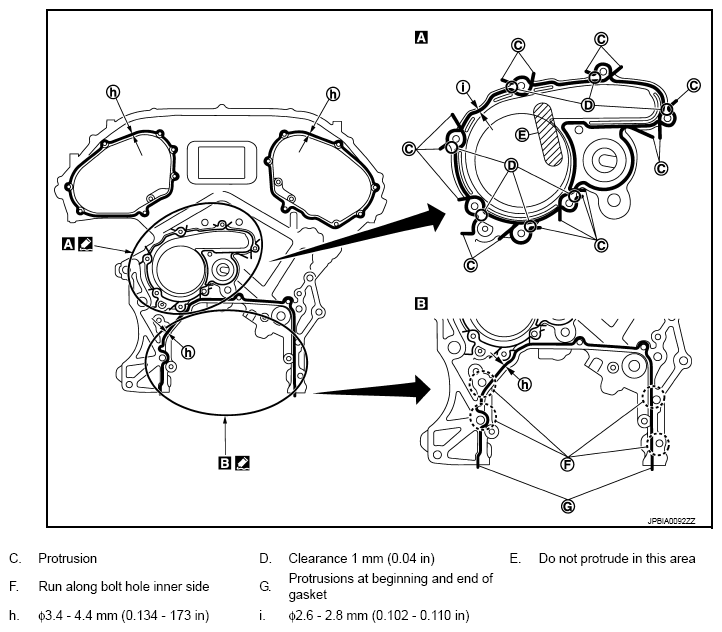

   Fig 2: Identifying Liquid Gasket On Installation Position Of Water Pump And Cylinder Head

   Courtesy of NISSAN NORTH AMERICA, INC.

   Refer to "COMPONENTS " for symbols in the figure.

3. Align rear timing chain case with dowel pins (bank 1 and bank 2) on cylinder block and install rear timing chain case.
   • Check that O-rings stay in place during installation to cylinder block.
4. Tighten mounting bolts in numerical order as shown in the figure.
   • There are three types of mounting bolts. Refer to the following for locating bolts.

   Bolt length: Bolt position

   20 mm (0.79 in): 1, 2, 3, 6, 7, 8, 9, 10

   16 mm (0.63 in): Except the above

   Torque: 12.7 N.m (1.3 kg-m, 9 ft-lb)

   Fig 3: Rear Timing Chain Case Mounting Bolts Loosening/Tightening Order

   Courtesy of NISSAN NORTH AMERICA, INC.
5. After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
   • If liquid gasket protrudes, wipe it off immediately.
6. After installing rear timing chain case, check the surface height difference between the following parts on the oil pan (upper) mounting surface.

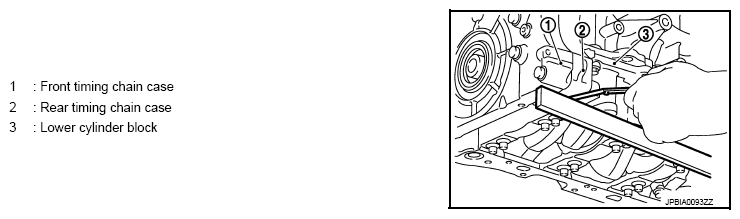

   Fig 4: Checking Surface Height Difference Between Parts On Oil Pan (Upper) Mounting Surface

   Courtesy of NISSAN NORTH AMERICA, INC.

   Standard

   Front timing chain case to rear timing chain case:

   -0.14 to 0.14 mm (-0.0055 to 0.0055 in)

   • If not within the standard, repeat the installation procedure.

• After installing front timing chain case, check the surface height difference between the following parts on the oil pan (upper) mounting surface.

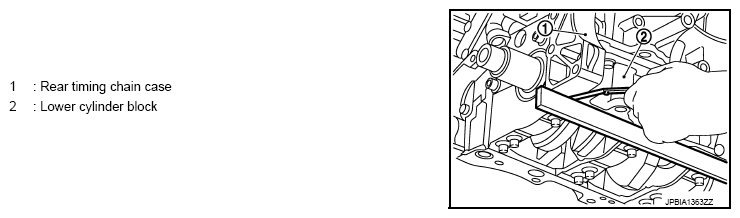

Fig 5: Checking Surface Height Difference Between Parts On Oil Pan (Upper) Mounting Surface

Courtesy of NISSAN NORTH AMERICA, INC.

Standard

Rear timing chain case to lower cylinder block:

-0.24 to 0.14 mm (-0.0094 to 0.0055 in)

• If not within the standard, repeat the installation procedure.
