Home >> Infiniti >> 2012 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Convertible) >> Removal And Installation >> Timing Chain >> Exploded View

Exploded View

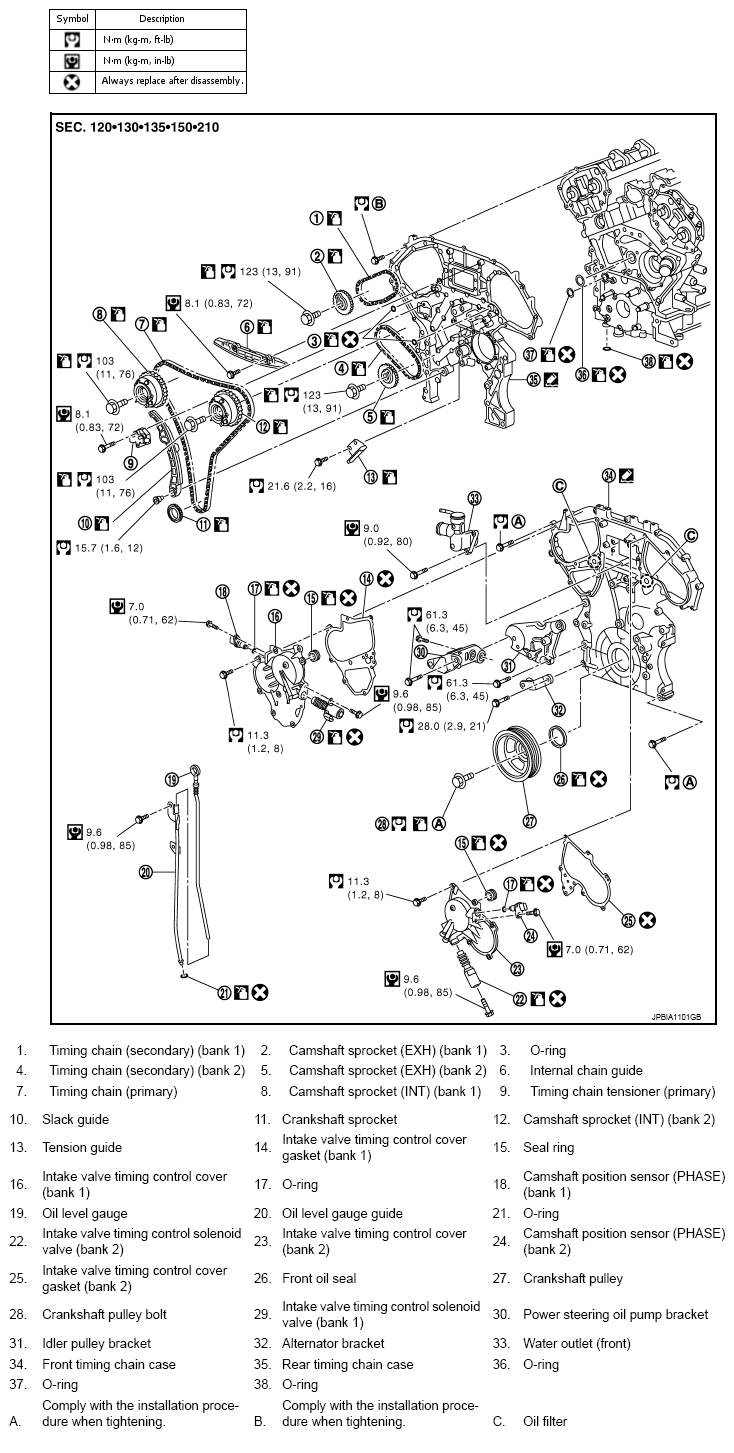

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G08449437

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
