Home >> Infiniti >> 2012 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Body & Frame >> Seats >> Automatic Drive Positioner (Convertible) >> System Description >> Automatic Drive Positioner System >> Memory Function >> MEMORY FUNCTION: Component Parts Location

MEMORY FUNCTION: Component Parts Location

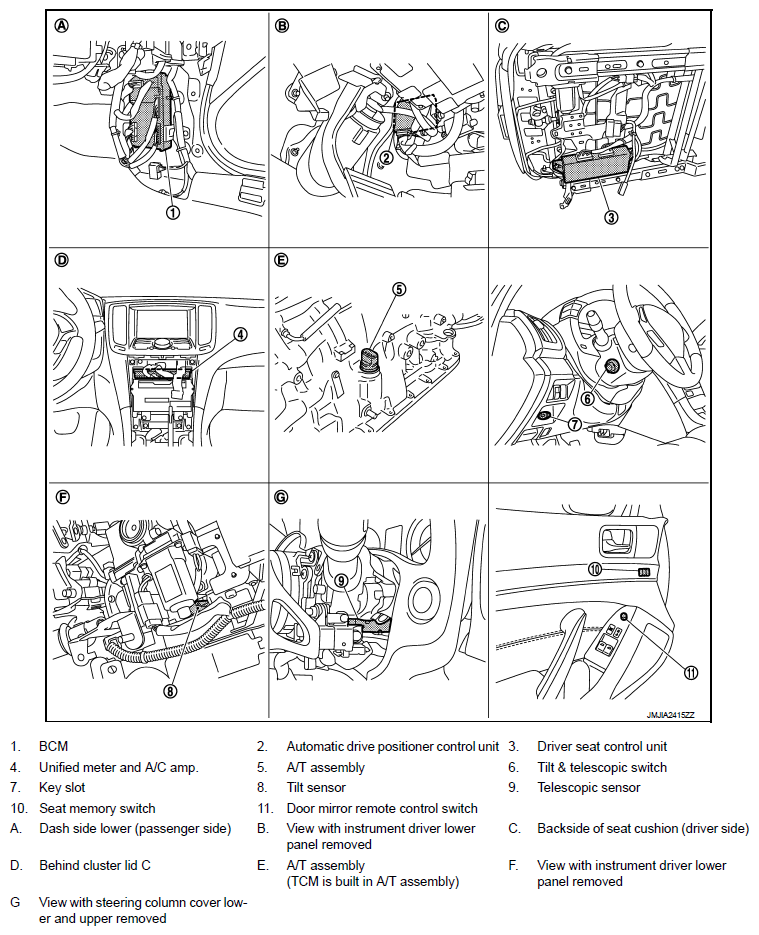

Fig 1: Memory Function Component Parts Location (1 Of 3)
G08450413Courtesy of NISSAN NORTH AMERICA, INC.

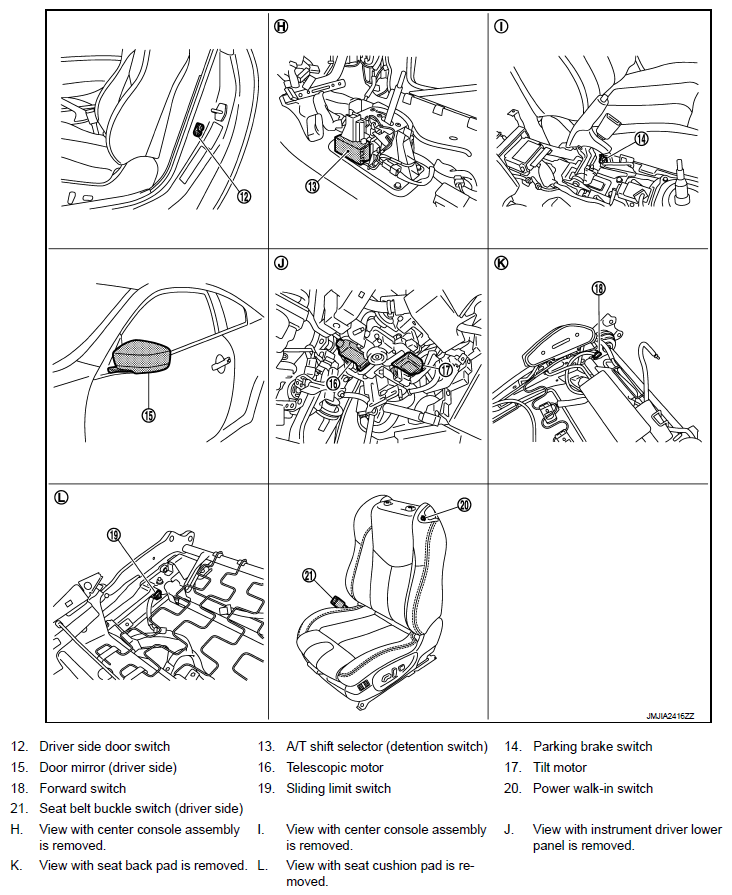

Fig 2: Memory Function Component Parts Location (2 Of 3)
G08450414Courtesy of NISSAN NORTH AMERICA, INC.

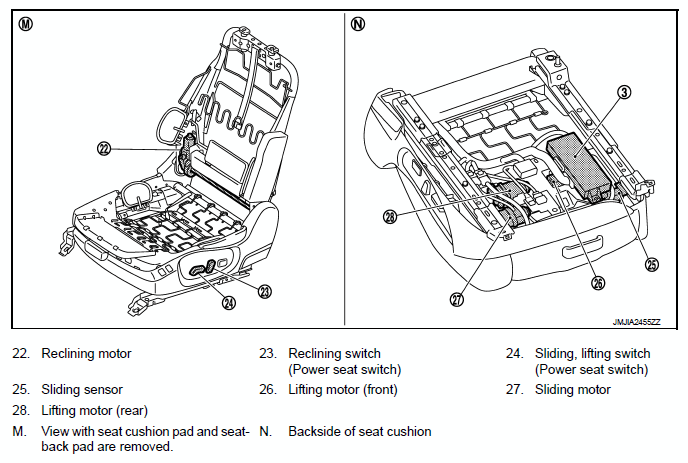

Fig 3: Memory Function Component Parts Location (3 Of 3)
G08450415Courtesy of NISSAN NORTH AMERICA, INC.
