CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

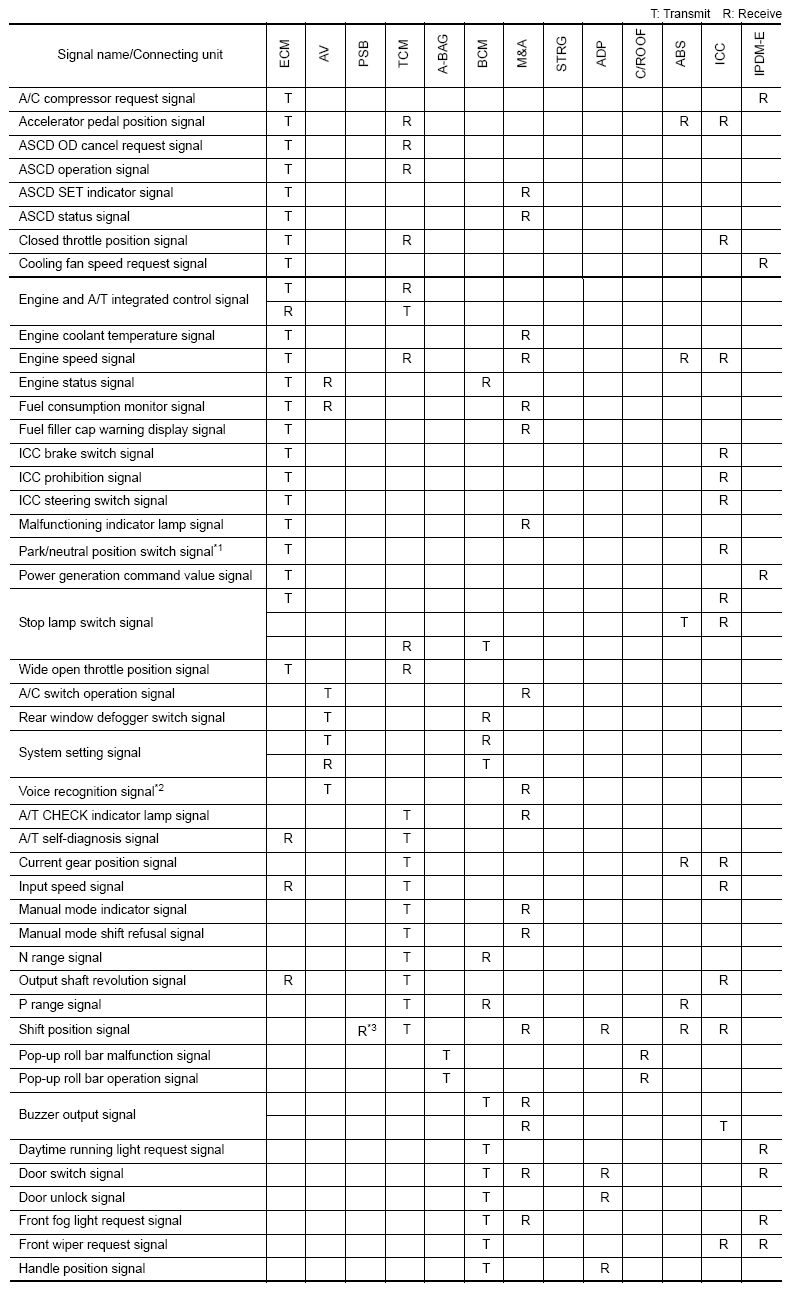

Fig 1: Identifying CAN Communication Signal Chart (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

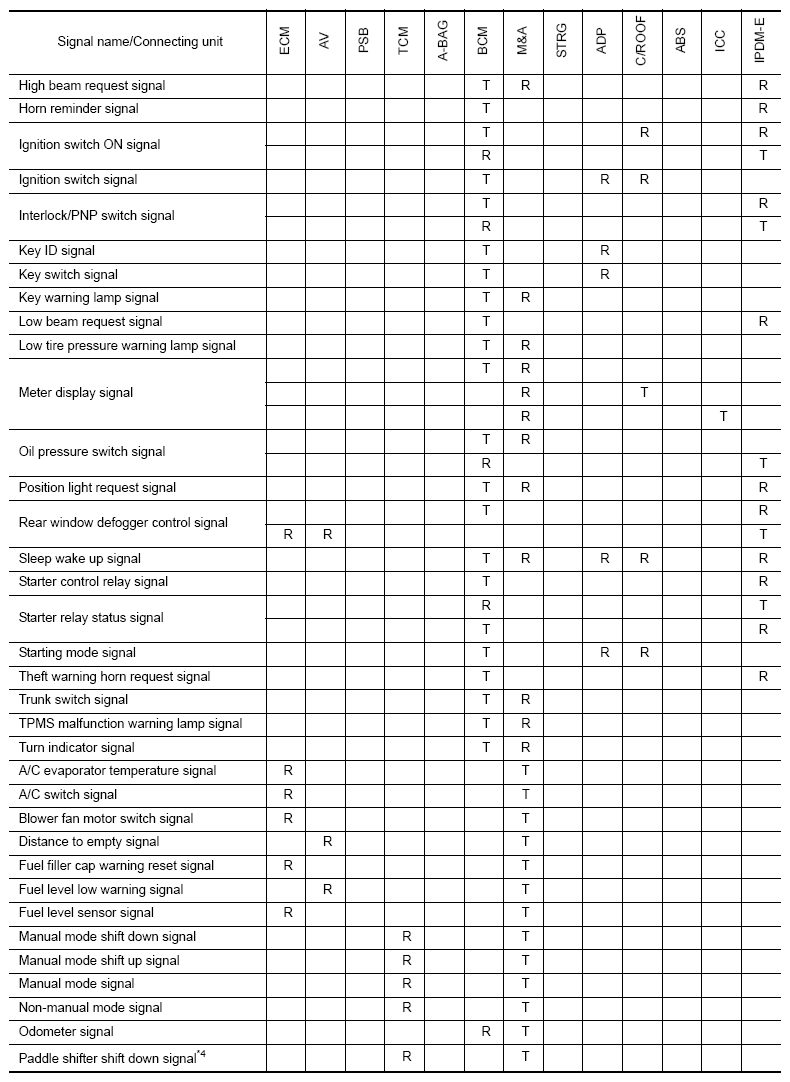

Fig 2: Identifying CAN Communication Signal Chart (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying CAN Communication Signal Chart (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
