Section 87 (Instrument Panel)
>>
Regular Grade
>>
Removal And Installation
>>
Center Console Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

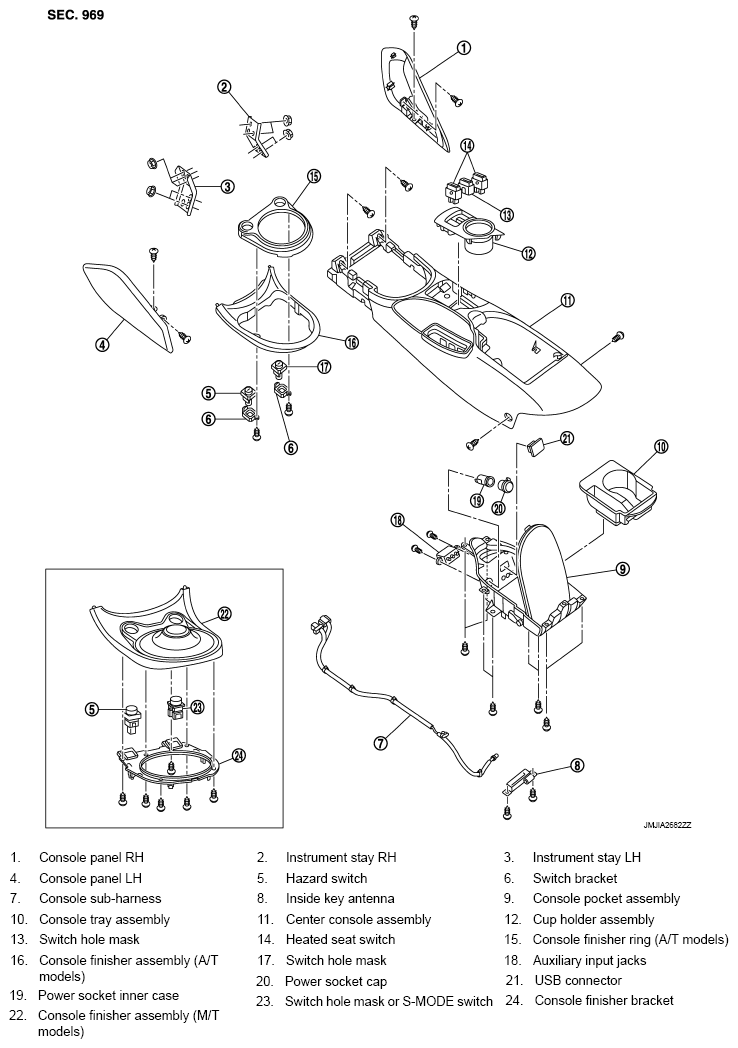

Fig 1: Exploded View Of Center Console Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
