Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Airbag Control System (Sedan)
>>
System Description
>>
SRS Air Bag System
>>
System Diagram
System Diagram

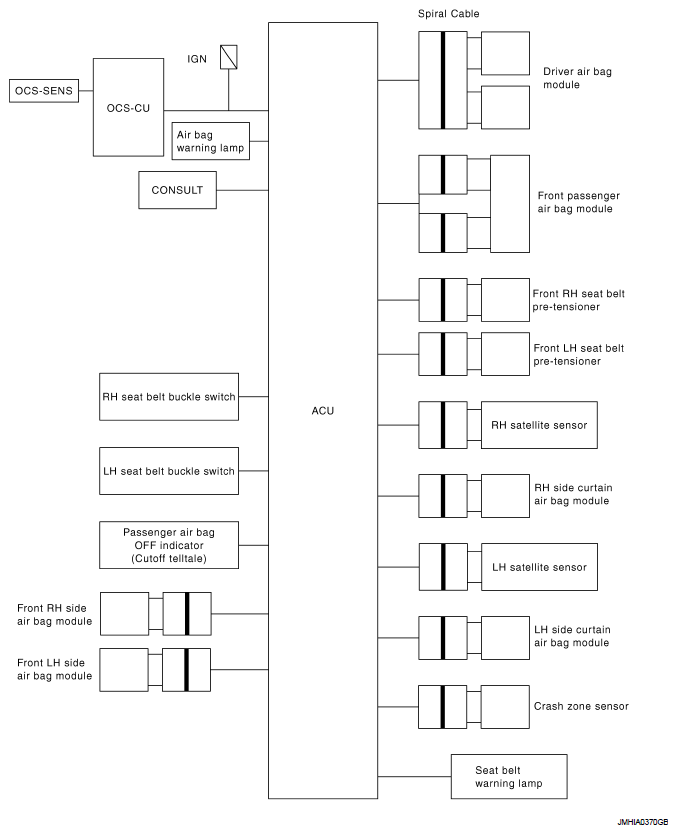

Fig 1: Identifying SRS Air Bag System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
