Exploded View

WARNING: This page is about a different variant/trim than selected.

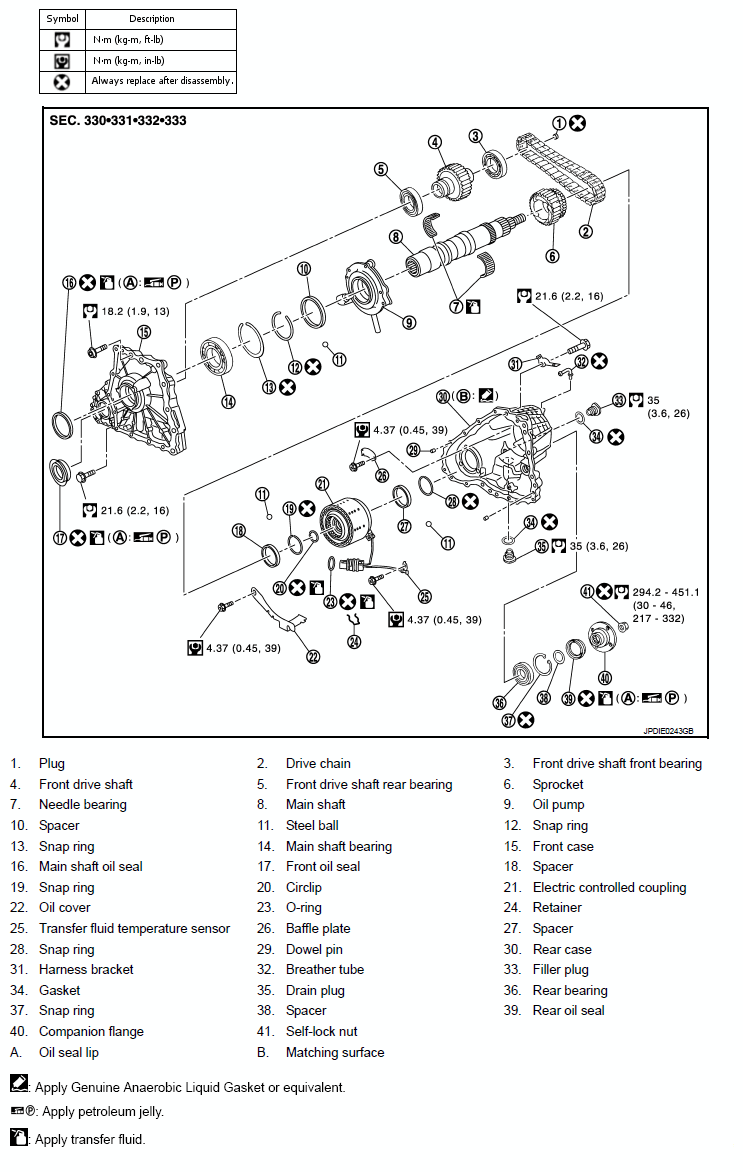

Fig 1: Exploded View Of Front Case And Rear Case With Torque Specifications
G08457205Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols not described above.
