Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

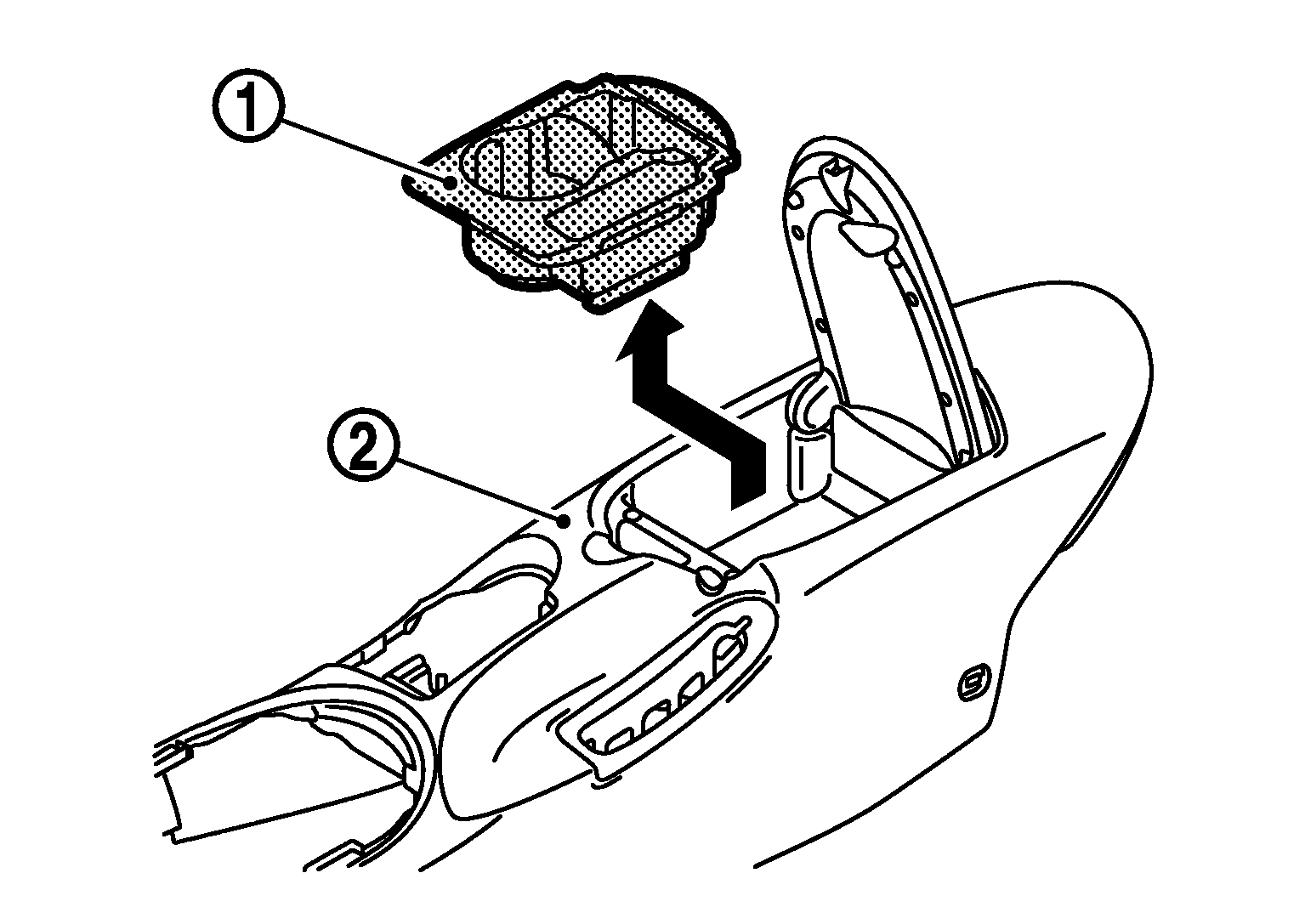

Open the console lid.
Pull up console tray assembly (1), and then remove console tray assembly from center console assembly (2).

Fig 1: Pulling Up Console Tray Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

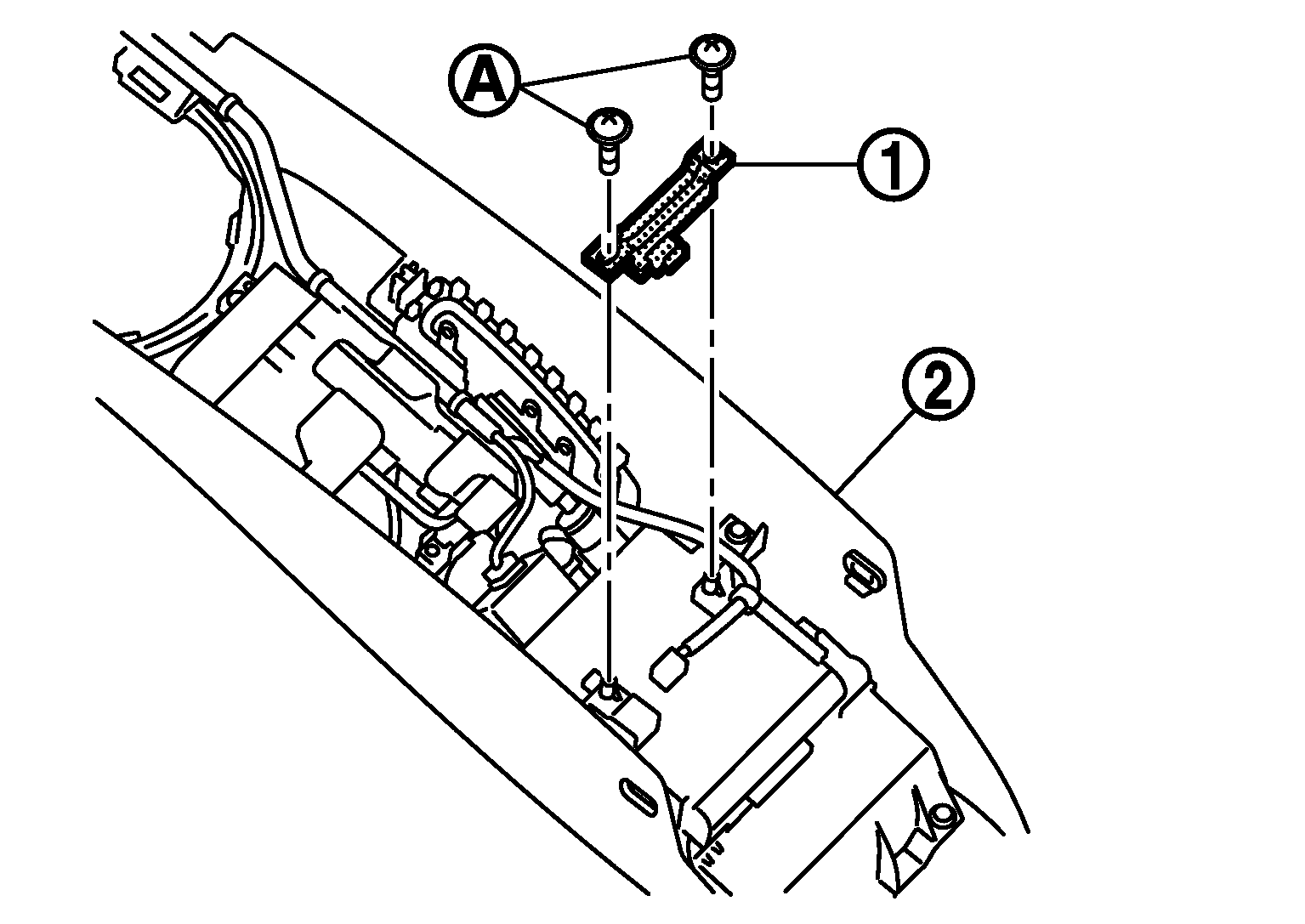

Remove inside key antenna.
1. Disconnect inside key antenna harness connector.
2. Remove inside key antenna (1) fixing screws (A).
3. Pull up inside key antenna from center console assembly (2).

  Fig 2: Identifying Inside Key Antenna
  Courtesy of NISSAN MOTOR CO., U.S.A.

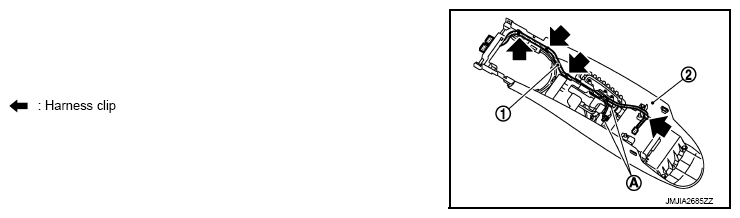

Remove console sub-harness.
1. Disconnect harness connectors (A).
2. Remove console sub-harness (1) fixing harness clips from center console assembly (2).

  Fig 3: Identifying Console Sub-Harness
  Courtesy of NISSAN MOTOR CO., U.S.A.

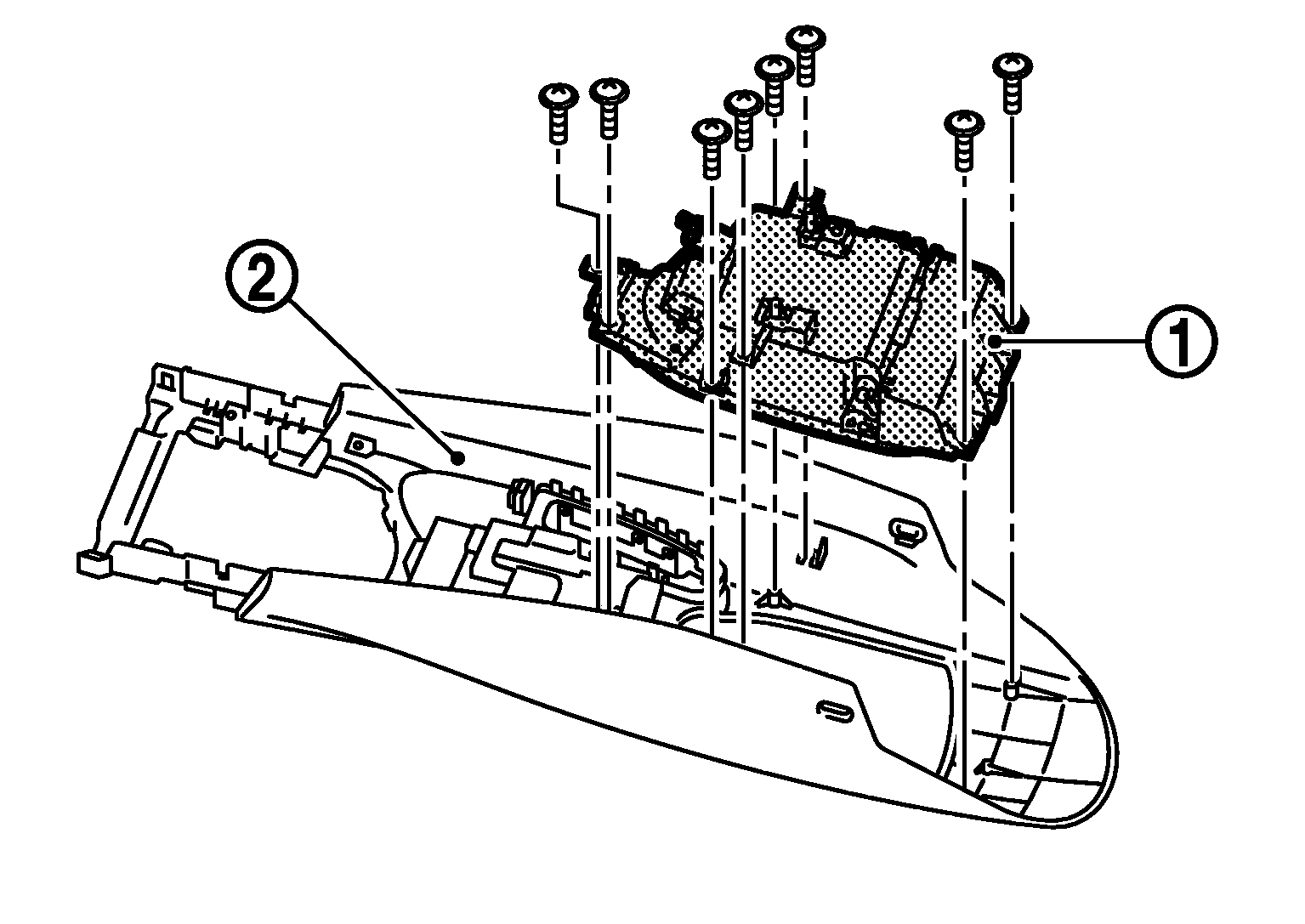

Remove console pocket assembly.
1. Remove console pocket assembly (1) fixing screws.
2. Pull up console pocket assembly from center console assembly (2).

  Fig 4: Identifying Console Pocket Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the following parts after removing console pocket assembly.
- Console power socket: Refer to "CONSOLE POWER SOCKET : REMOVAL AND INSTALLATION ".
- Auxiliary input jacks (if equipped): Refer to "REMOVAL AND INSTALLATION ".
- USB connector (if equipped): Refer to "REMOVAL AND INSTALLATION ".
