Quick Connector

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

After connecting fuel tube quick connectors, check quick connectors are secure.

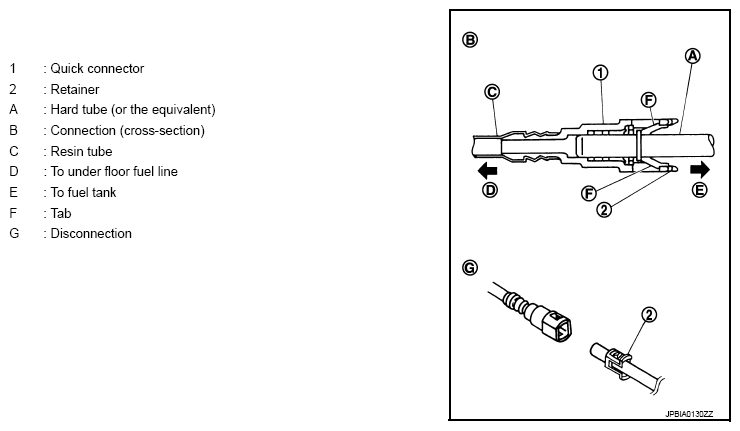

Fig 1: Cross-Sectional View Of Quick Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Ensure that connector and resin tube never contact any adjacent parts.
