Inspection After Disassembly

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.

Oil Pump Clearance

Measure the clearance with feeler gauge (C).
- Clearance between oil pump outer rotor and oil pump body [position (B)]
  Standard : Refer to "OIL PUMP ".
- Tip clearance between oil pump inner rotor and oil pump outer rotor [position (A)]
  Standard : Refer to "OIL PUMP ".

  Fig 1: Measuring Clearance Between Oil Pump Outer Rotor And Oil Pump Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure the clearance with feeler gauge and straightedge (A).
- Side clearance between oil pump inner rotor and oil pump body [position (C)]
  Standard : Refer to "OIL PUMP ".
- Side clearance between oil pump outer rotor and oil pump body [position (B)]
  Standard : Refer to "OIL PUMP ".

  Fig 2: Measuring Side Clearance Between Oil Pump Inner Rotor And Oil Pump Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP BODY INNER DIAMETER
- Measure the inner diameter of oil pump body with inside micrometer. [position (A)]
OIL PUMP INNER ROTOR OUTER DIAMETER
- Measure the outer diameter of protruded portion of oil pump inner rotor (1) with micrometer. [position (B)]

  Fig 3: Measuring Outer Diameter Of Protruded Portion Of Oil Pump
  Courtesy of NISSAN MOTOR CO., U.S.A.
OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE
- (Clearance) = (Oil pump body inner diameter) - (Oil pump inner rotor outer diameter)
  Standard : Refer to "OIL PUMP ".
If measured/calculated values are out of the standard, replace oil pump assembly.
Regulator Valve Clearance

(Clearance) = (Regulator valve hole diameter) - (Regulator valve outer diameter)

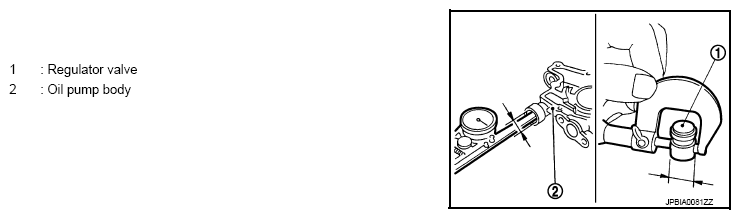

Fig 4: Checking Regulator Valve Diameter
Courtesy of NISSAN MOTOR CO., U.S.A.

Standard : Refer to "REGULATOR VALVE ".
If the calculated value is out of the standard, replace oil pump assembly.
CAUTION:
- Coat regulator valve with engine oil.
- Check that it falls smoothly into valve hole by its own weight.
