IGNITION TIMING : Special Repair Requirement

WARNING: This page is about a different car, the 2011 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown.

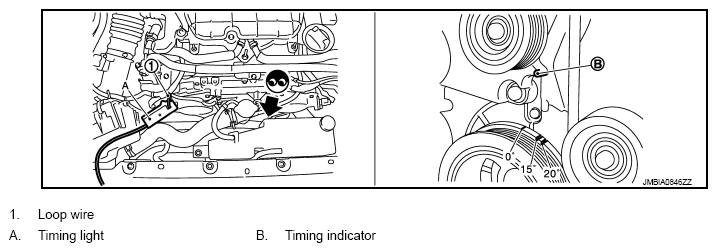

      Fig 1: Attaching Timing Light To Loop Wire
      G07099503Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Check ignition timing.

    INSPECTION END
