Overall Sequence

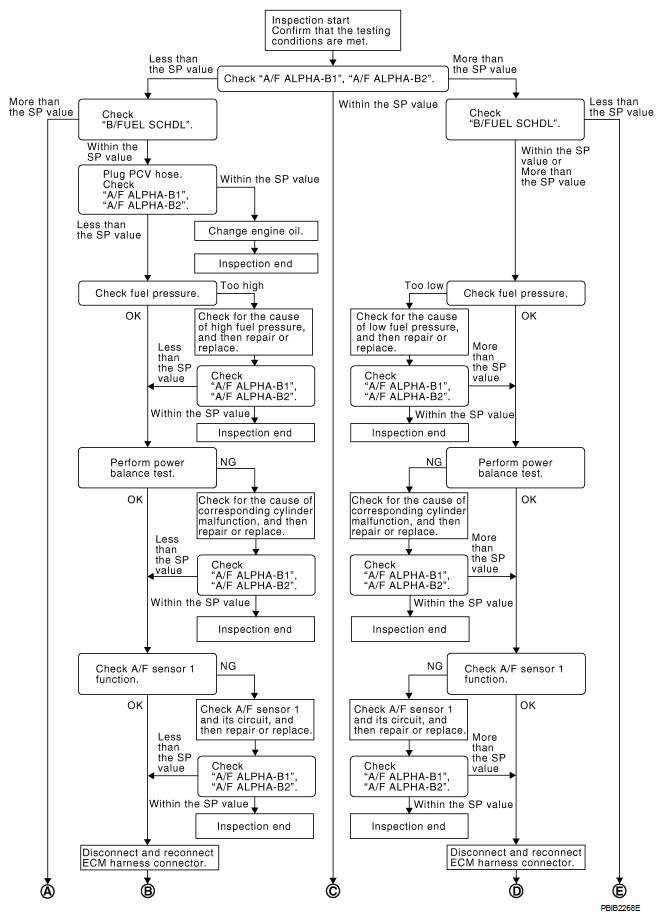

Fig 1: Specification Value Trouble Diagnostic Procedure Flow Chart (1 Of 2)
G08451510Courtesy of NISSAN NORTH AMERICA, INC.

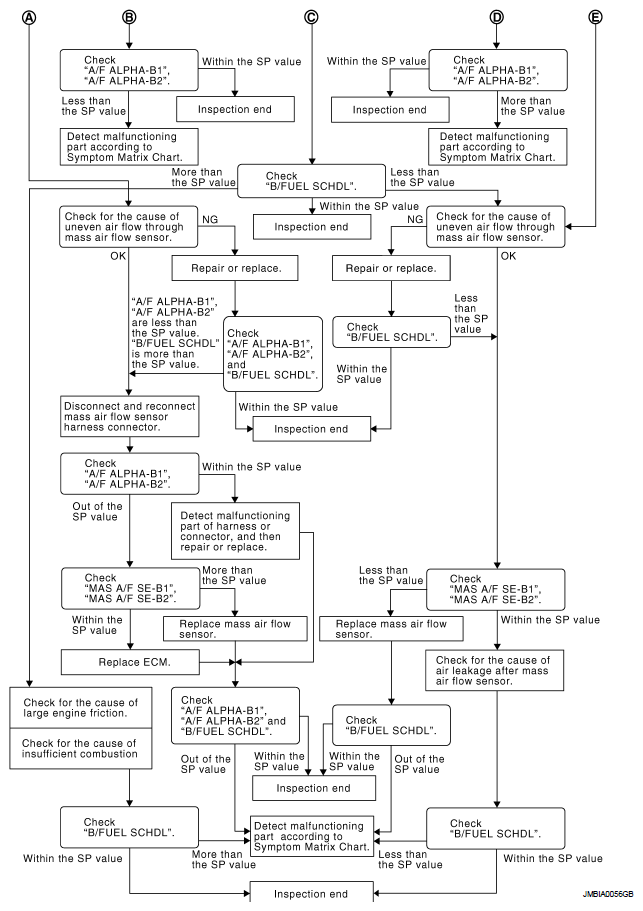

Fig 2: Specification Value Trouble Diagnostic Procedure Flow Chart (2 Of 2)
G08451511Courtesy of NISSAN NORTH AMERICA, INC.
