Oil Cooler
>>
Exploded View
Exploded View

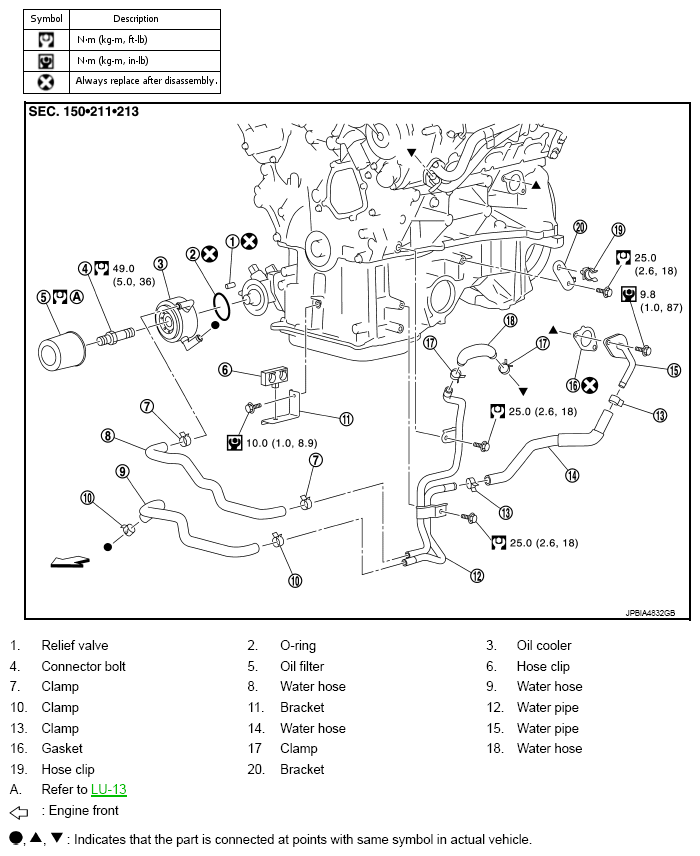

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
RELATION BETWEEN ILLUSTRATIONS AND DESCRIPTIONS
for symbols in the figure.
