System Diagram

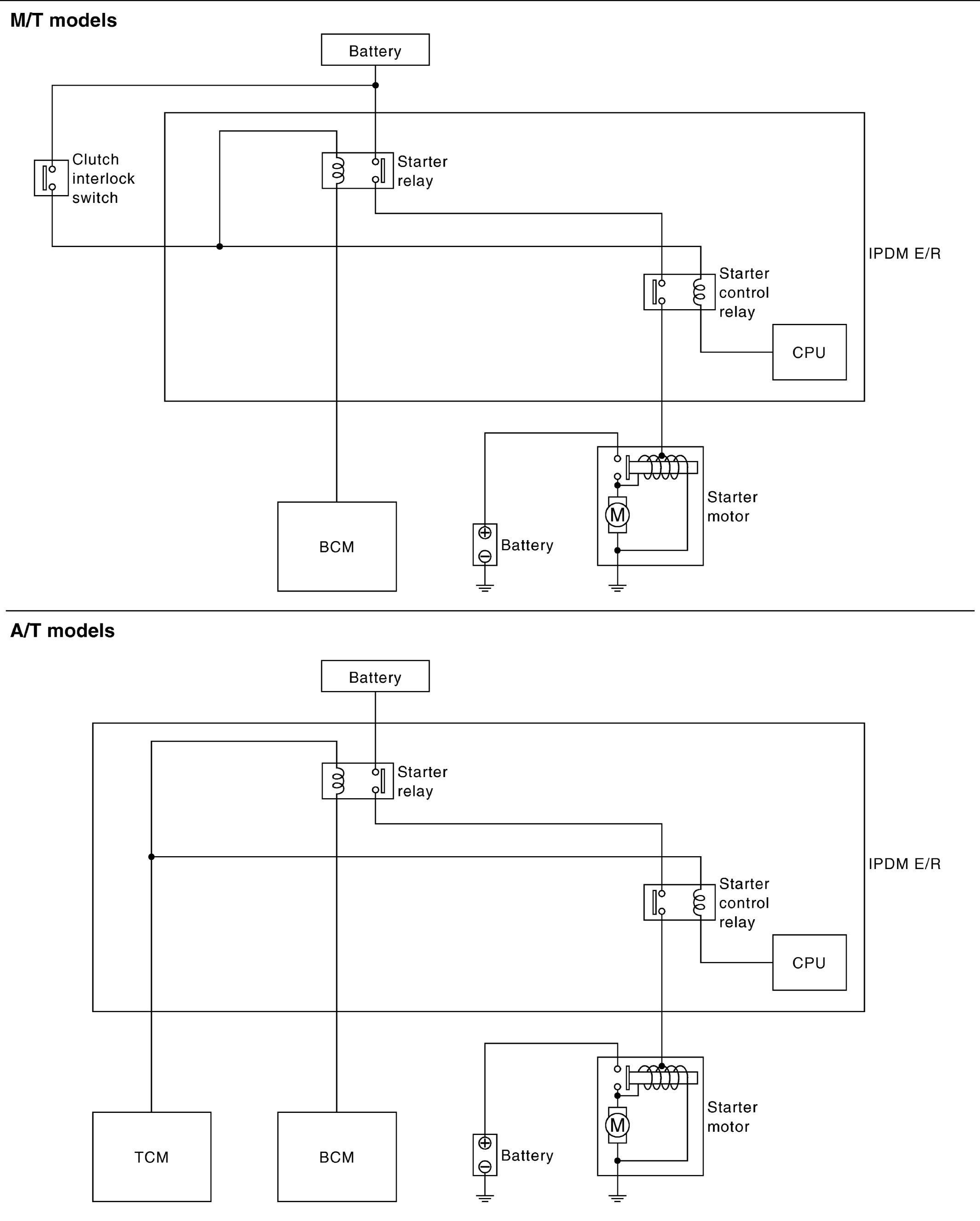

Fig 1: Starting System - System Diagram

G05224193

Courtesy of NISSAN NORTH AMERICA, INC.
