Exploded View
>>
Armrest
Exploded View: Armrest

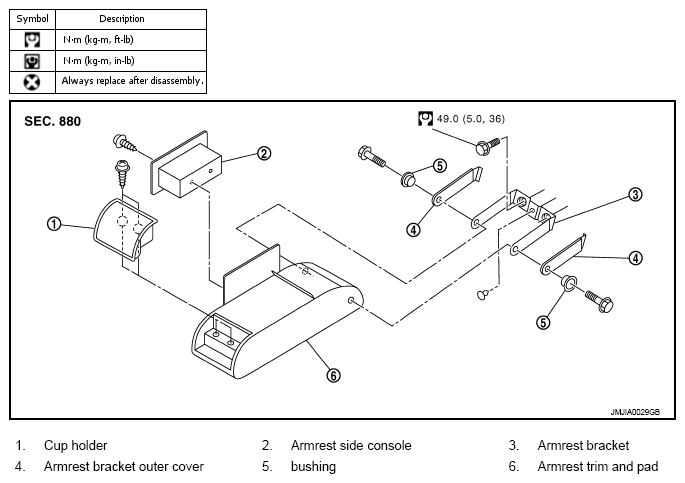

Fig 1: Exploded View Of Armrest With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols in the figure.
