EXIT ASSIST FUNCTION: Component Parts Location

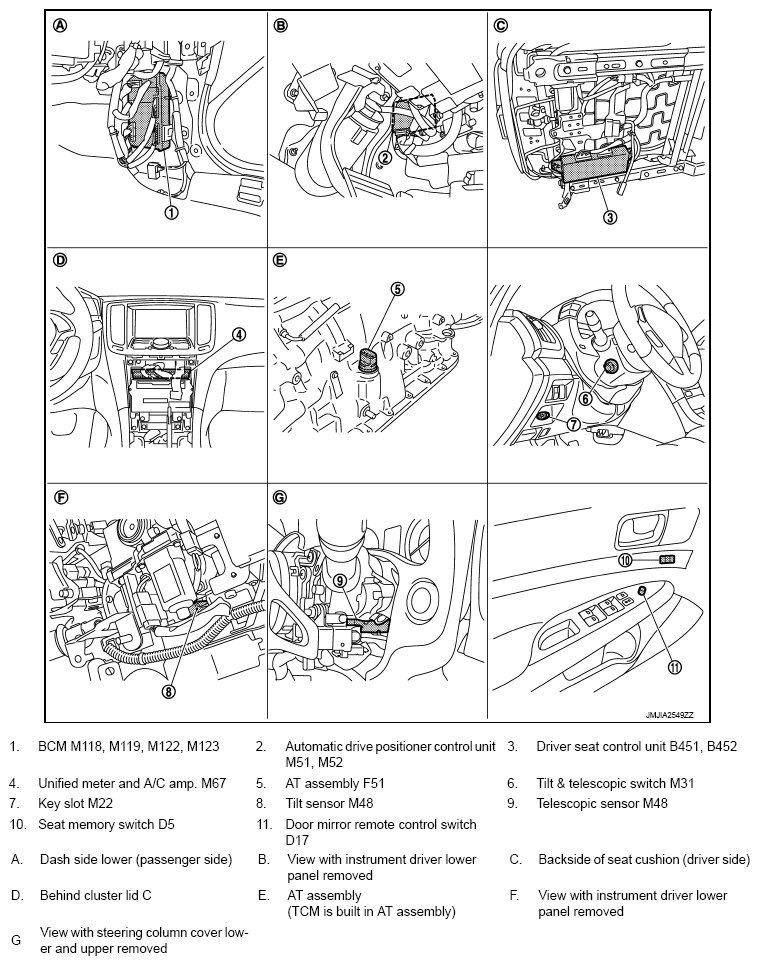

Fig 1: Exit Assist Function Component Parts Location (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

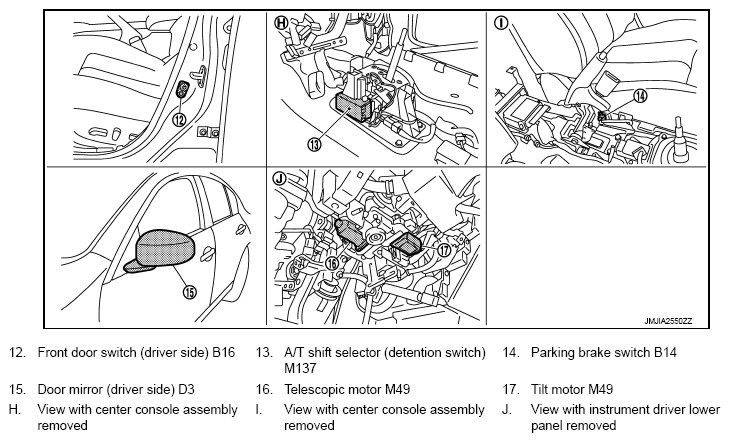

Fig 2: Exit Assist Function Component Parts Location (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

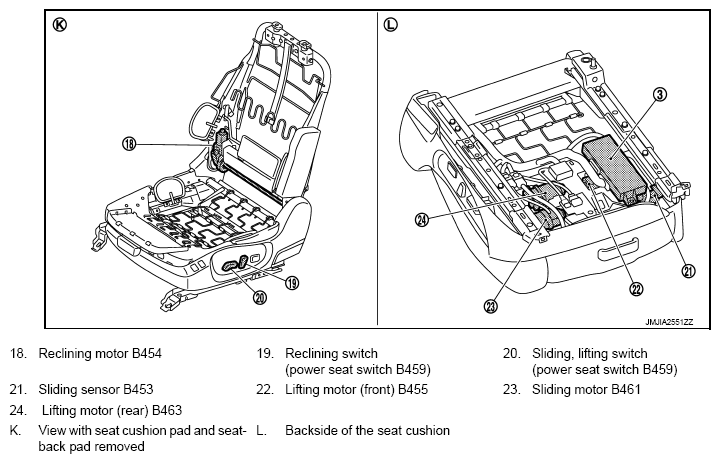

Fig 3: Exit Assist Function Component Parts Location (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
