Home
>>
Infiniti
>>
2012
>>
G25 Base
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Transmission (Sedan)
>>
Removal And Installation
>>
Control Rod
>>
Exploded View
Exploded View

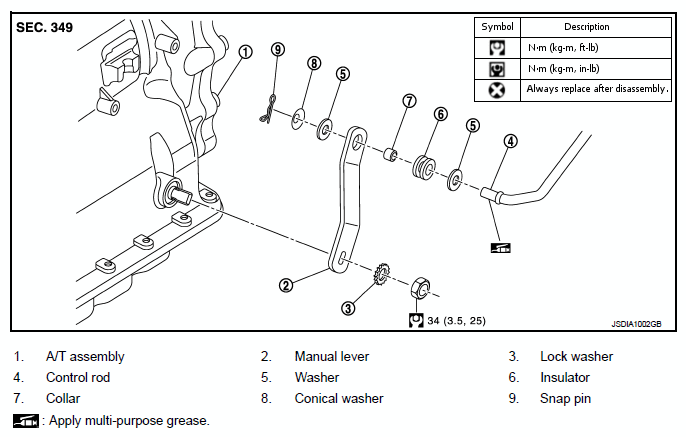

Fig 1: Exploded View Of Control Rod With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described on the above.
