Control System

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:

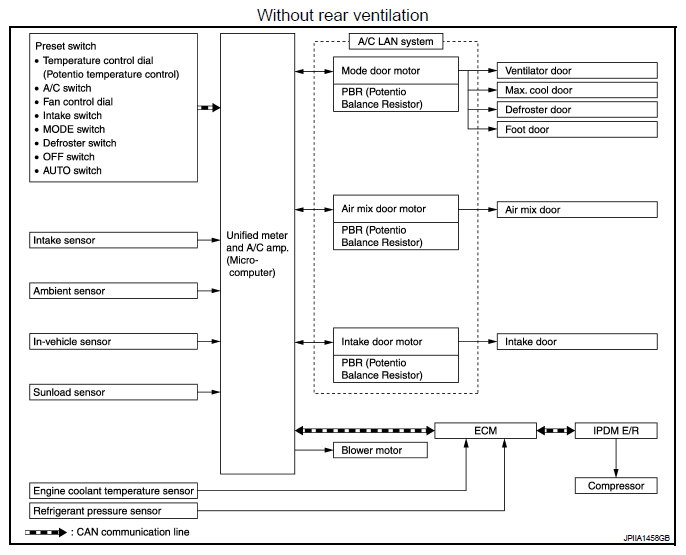

Fig 1: Automatic Air Conditioning System Diagram (Without Rear Ventilation)
G06323332Courtesy of NISSAN NORTH AMERICA, INC.

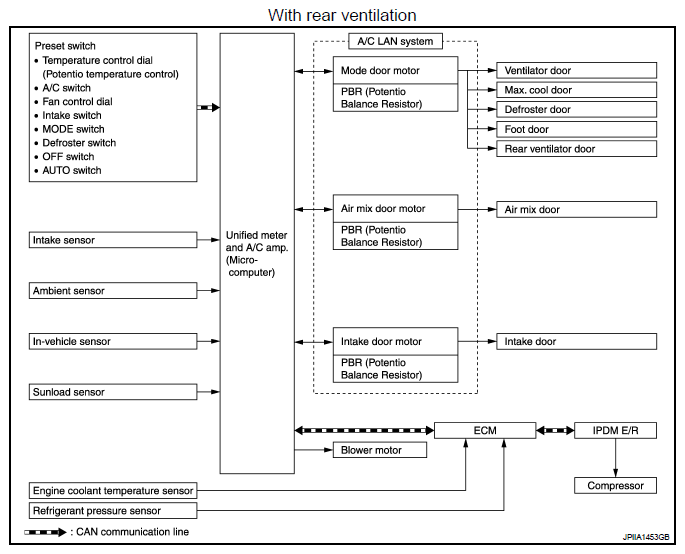

Fig 2: Automatic Air Conditioning System Diagram (With Rear Ventilation)
G06640133Courtesy of NISSAN NORTH AMERICA, INC.
