MEMORY FUNCTION: Component Parts Location

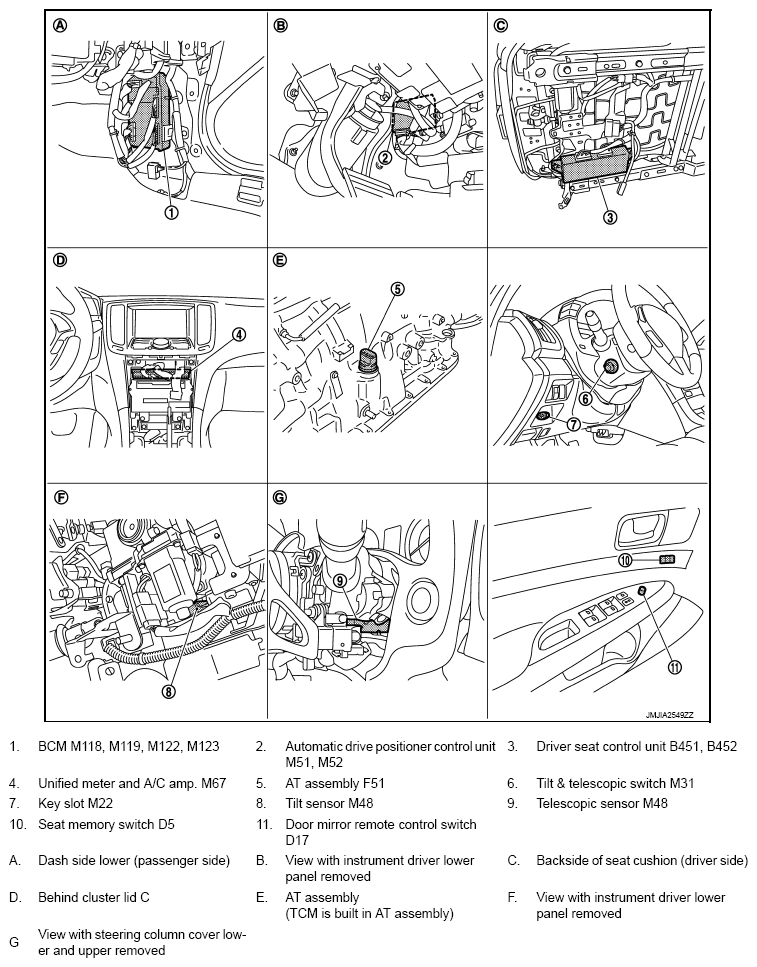

Fig 1: Memory Function Component Parts Location (1 Of 3)
G08453122Courtesy of NISSAN NORTH AMERICA, INC.

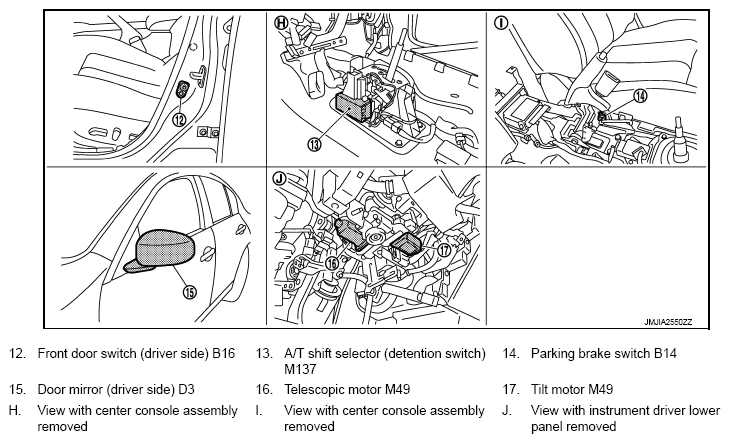

Fig 2: Memory Function Component Parts Location (2 Of 3)
G08453123Courtesy of NISSAN NORTH AMERICA, INC.

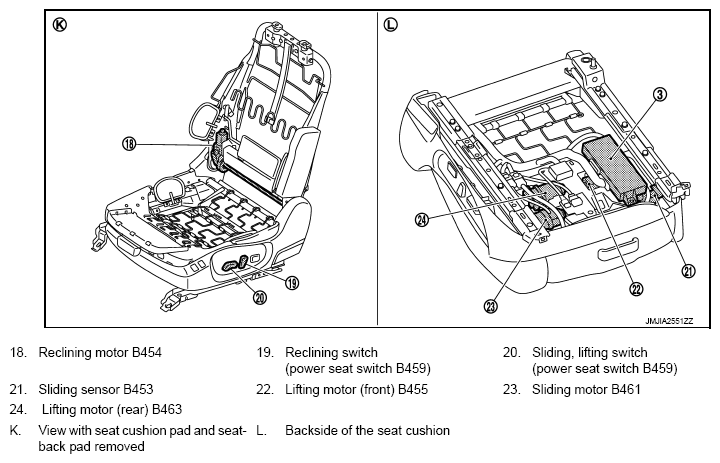

Fig 3: Memory Function Component Parts Location (3 Of 3)
G08453124Courtesy of NISSAN NORTH AMERICA, INC.
