REMOTE KEYLESS ENTRY FUNCTION: System Diagram

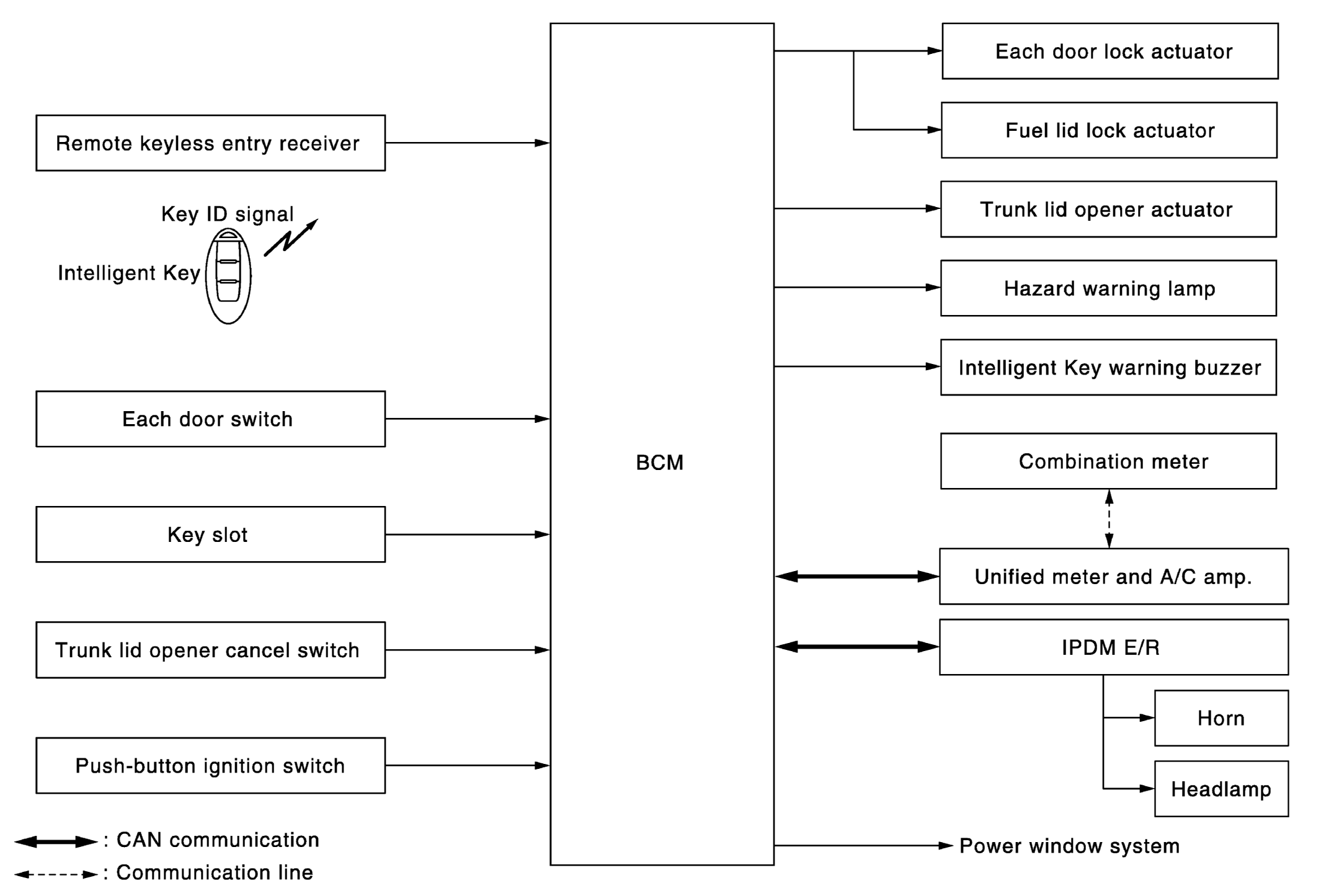

Fig 1: Remote Keyless Entry Function - System Diagram

G06323852

Courtesy of NISSAN NORTH AMERICA, INC.
