VQ35HR: Exploded View

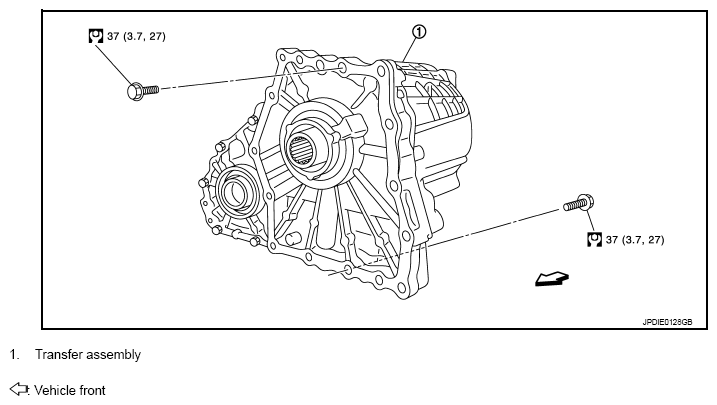

Fig 1: Transfer Assembly And Mounting Bolts With Torque Specifications (VQ35HR)

G08229124

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
