VQ35HR: Exploded View

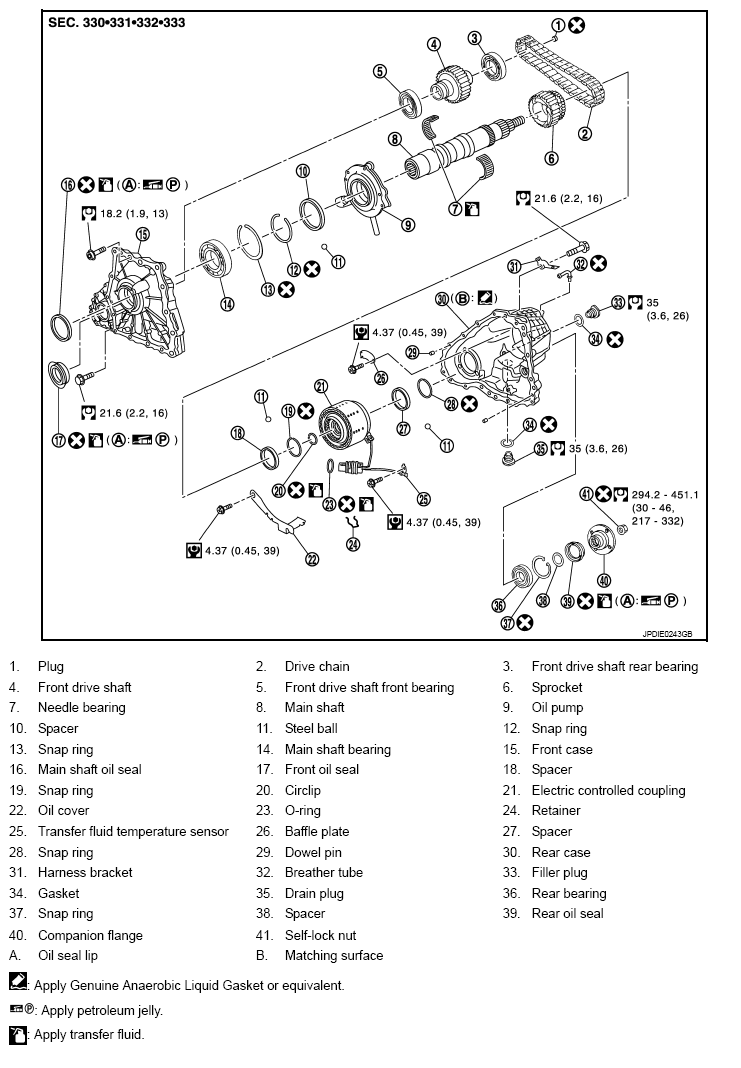

Fig 1: Exploded View Of Front And Rear Case (VQ35HR)
G08229135Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
