Exploded View

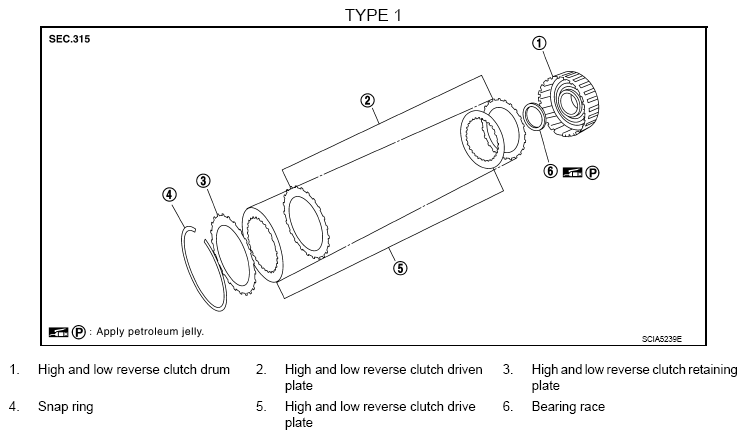

Fig 1: Exploded View Of High And Low Reverse Clutch (Type 1)
G08218017Courtesy of NISSAN NORTH AMERICA, INC.

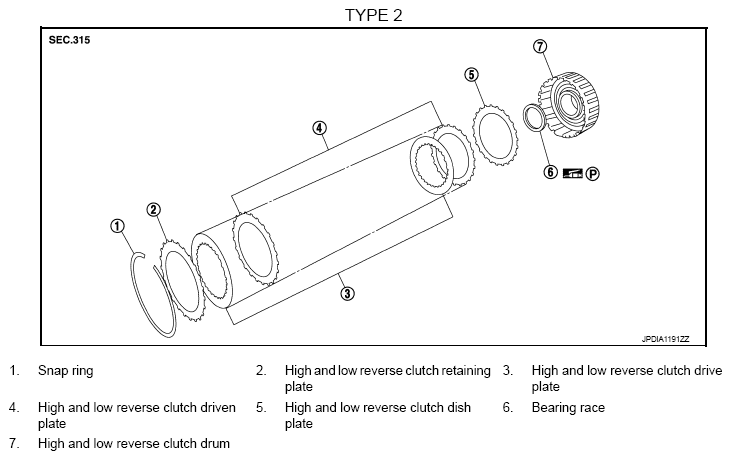

Fig 2: Exploded View Of High And Low Reverse Clutch (Type 2)
G08218018Courtesy of NISSAN NORTH AMERICA, INC.
