Exploded View

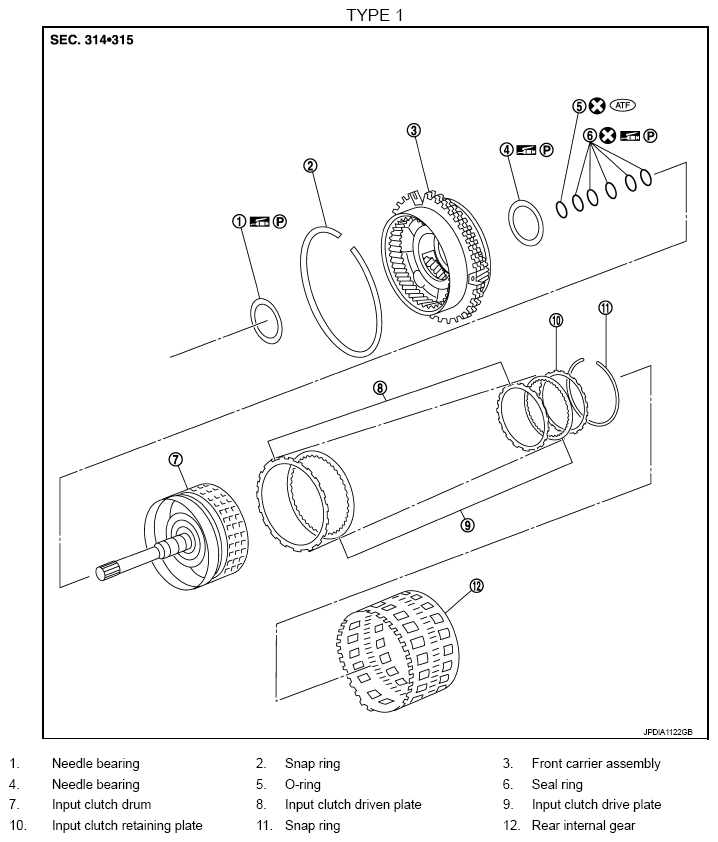

Fig 1: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear (Type 1)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

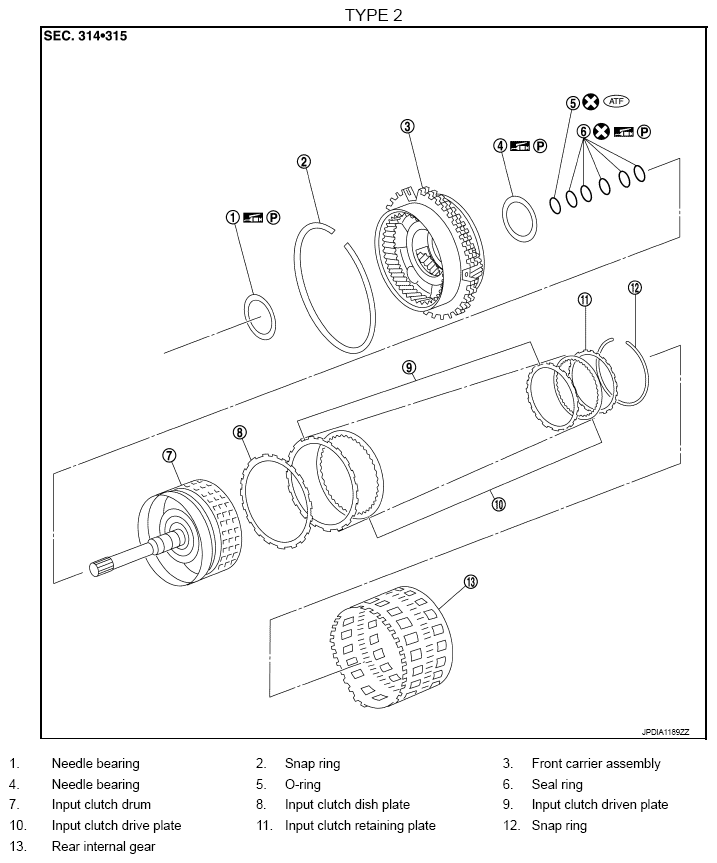

Fig 2: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear (Type 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
