Symptom Table 2

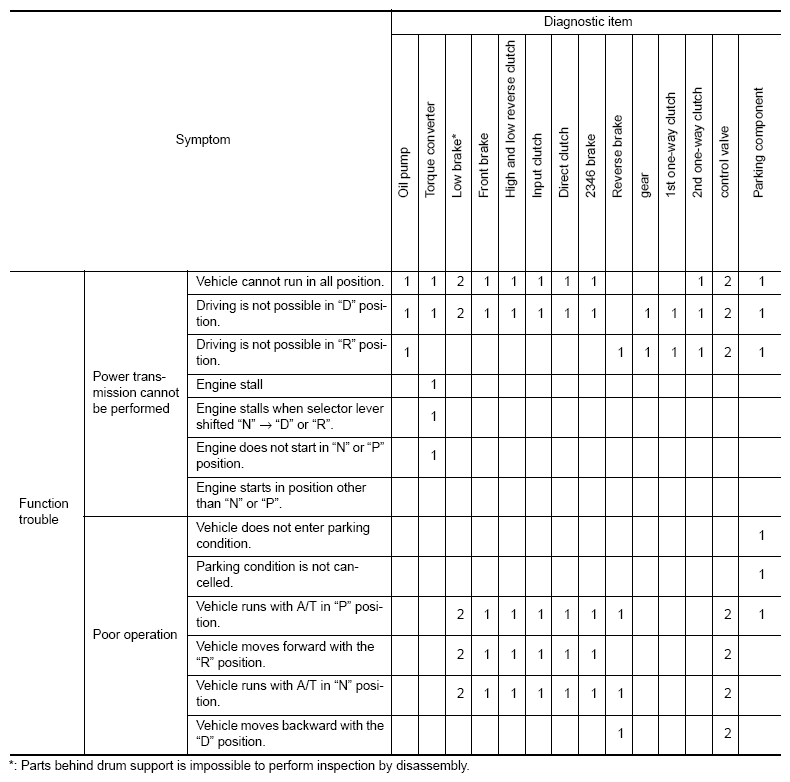

Fig 1: Diagnoses Symptoms Chart 2 (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Refer to Cross-Sectional View .

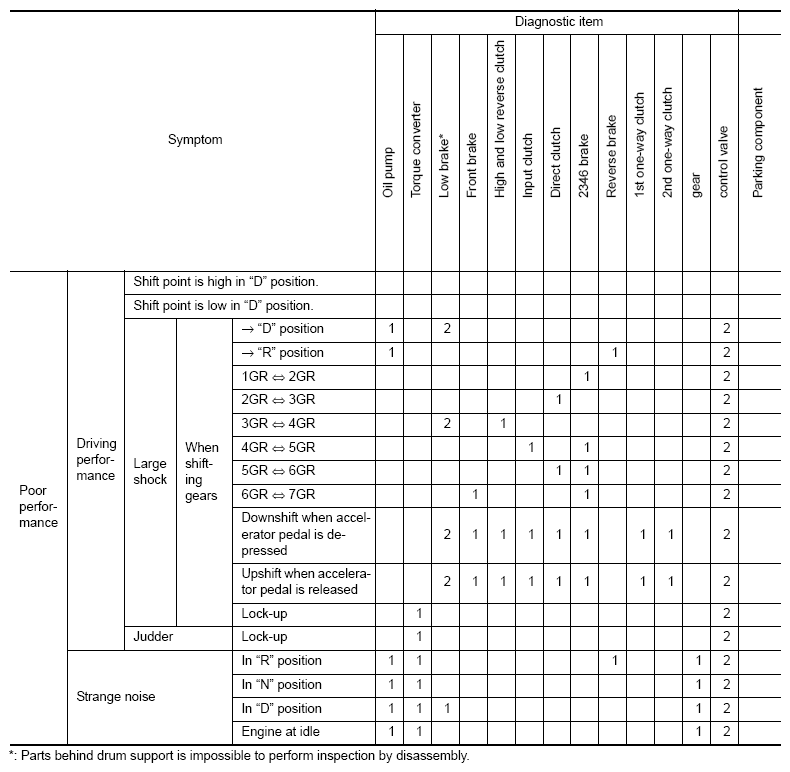

Fig 2: Diagnoses Symptoms Chart 2 (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Refer to Cross-Sectional View .

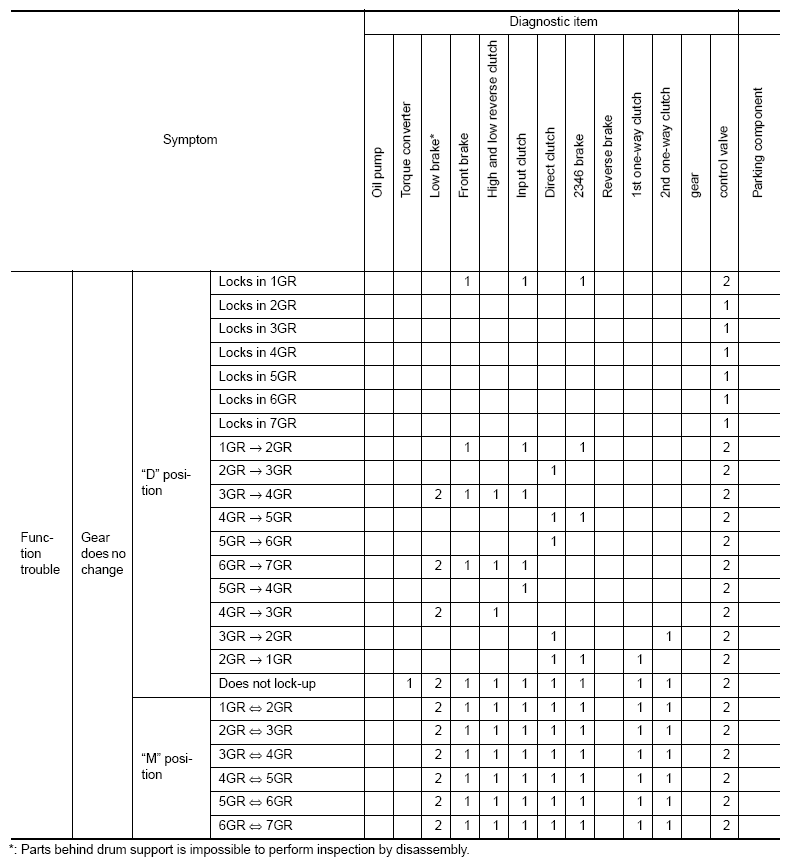

Fig 3: Diagnoses Symptoms Chart 2 (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

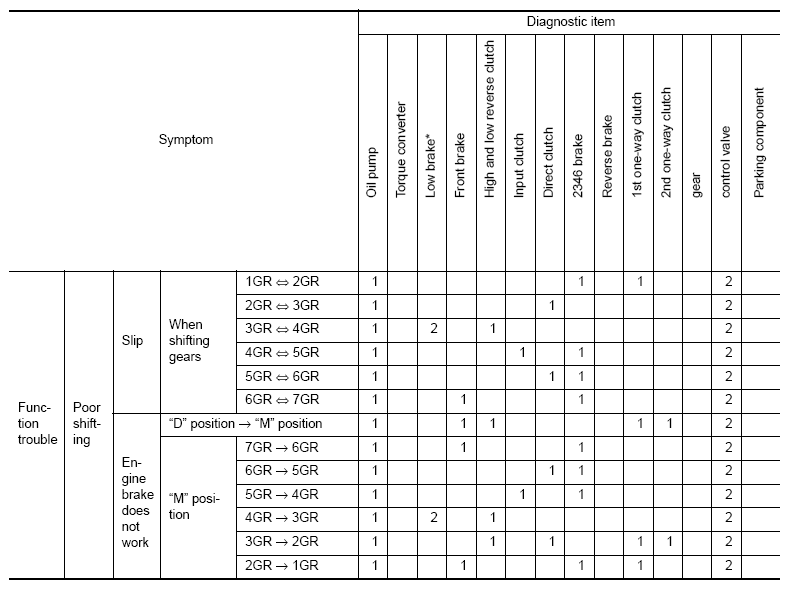

Fig 4: Diagnoses Symptoms Chart 2 (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Refer to Cross-Sectional View .

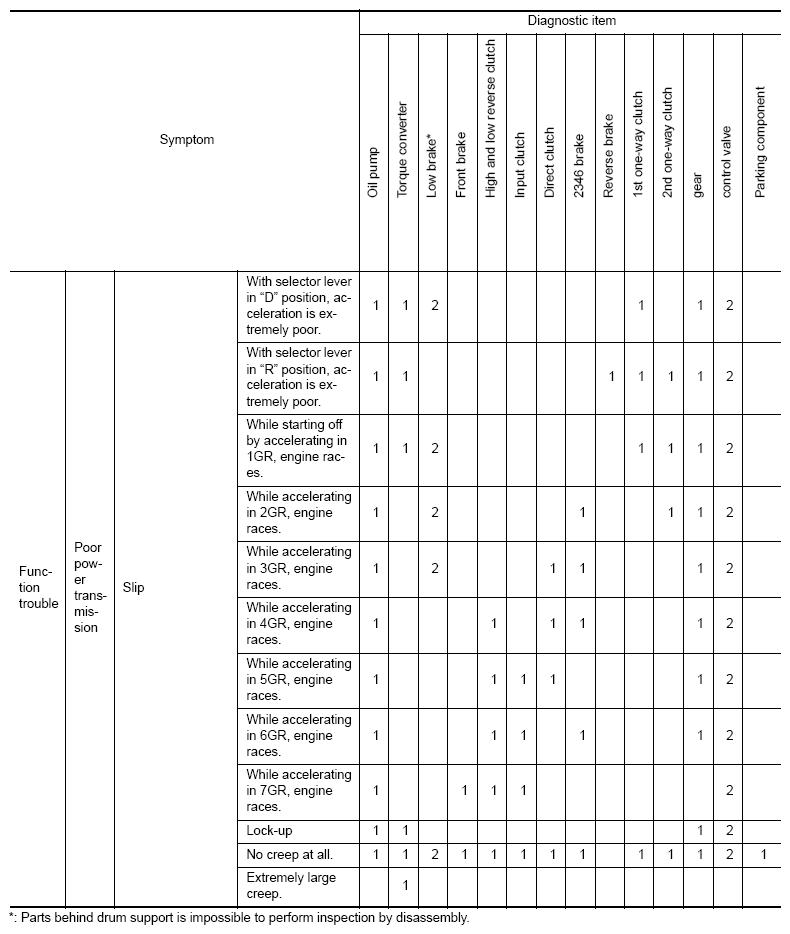

Fig 5: Diagnoses Symptoms Chart 2 (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

*: Refer to Cross-Sectional View .
