Symptom Table 1
Symptom Table 1

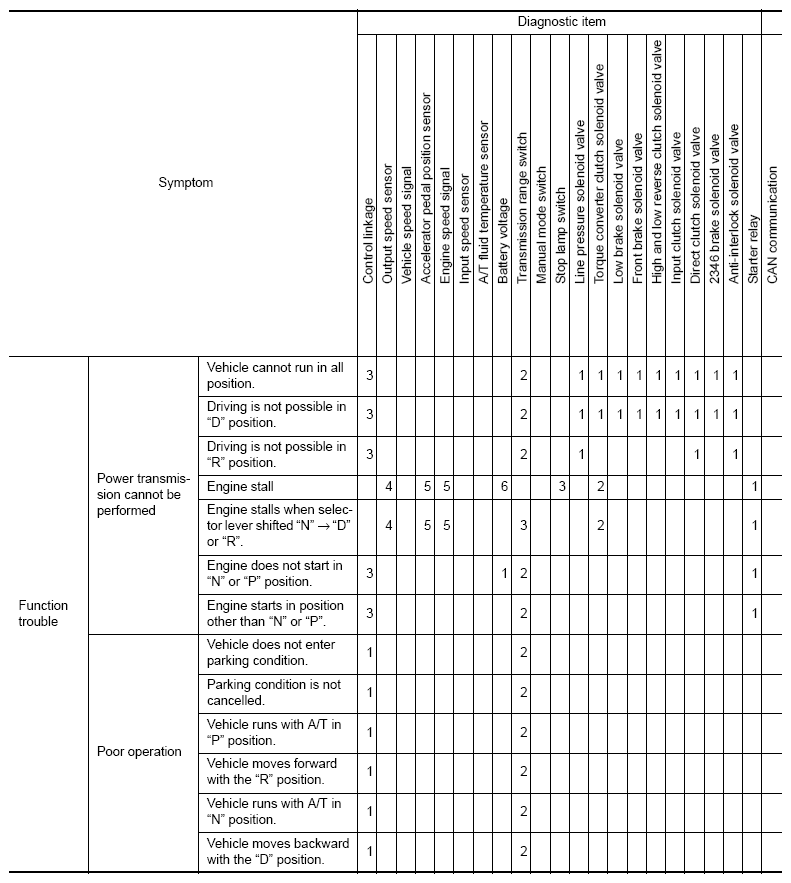

Fig 1: Diagnoses Symptoms Chart 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

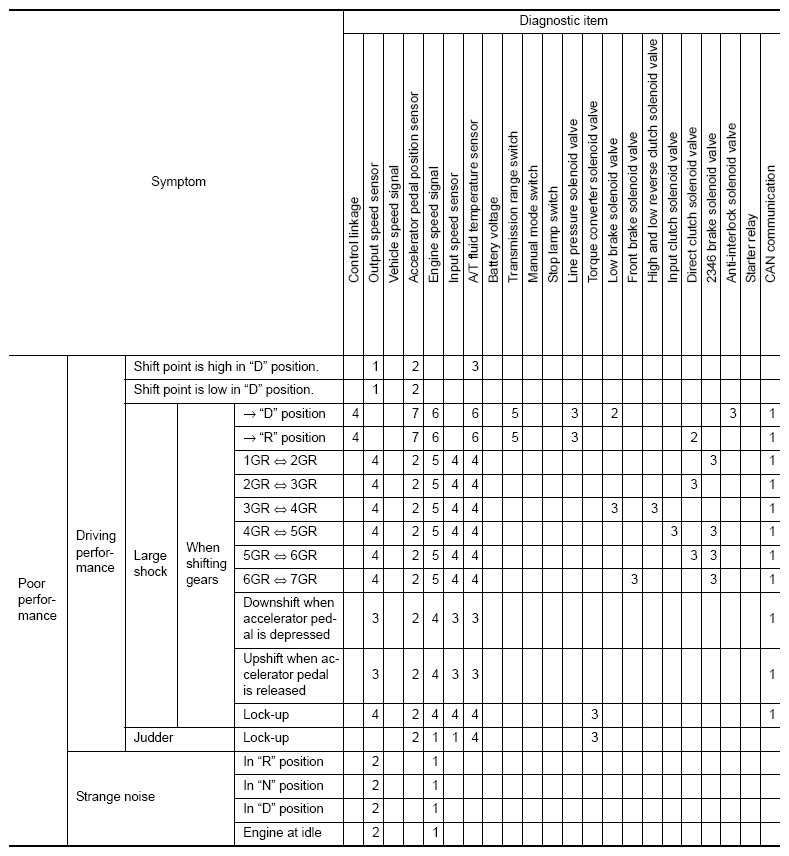

Fig 2: Diagnoses Symptoms Chart 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Diagnoses Symptoms Chart 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Diagnoses Symptoms Chart 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Diagnoses Symptoms Chart 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
