Consult/GST Checking System: Description

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

When CONSULT/GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

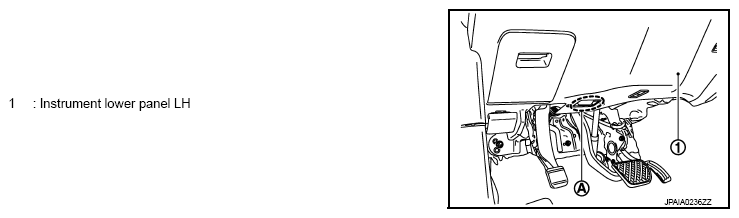

Fig 1: Identifying Data Link Connector And Instrument Lower Panel LH
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to CONSULT Software Operation Manual for more information.
