Section 165 (Body Control System -- FX35/FX50)
>>
System Description
>>
Body Control System
>>
Component Parts Location
Component Parts Location
WARNING:
This page is about a different car, the 2011 Infiniti FX50 and 2011 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

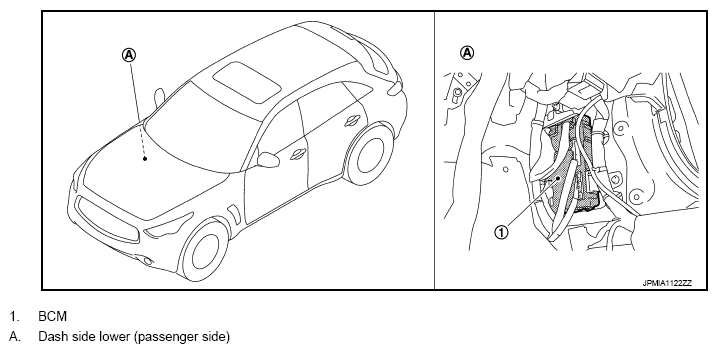

Fig 1: Body Control System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
